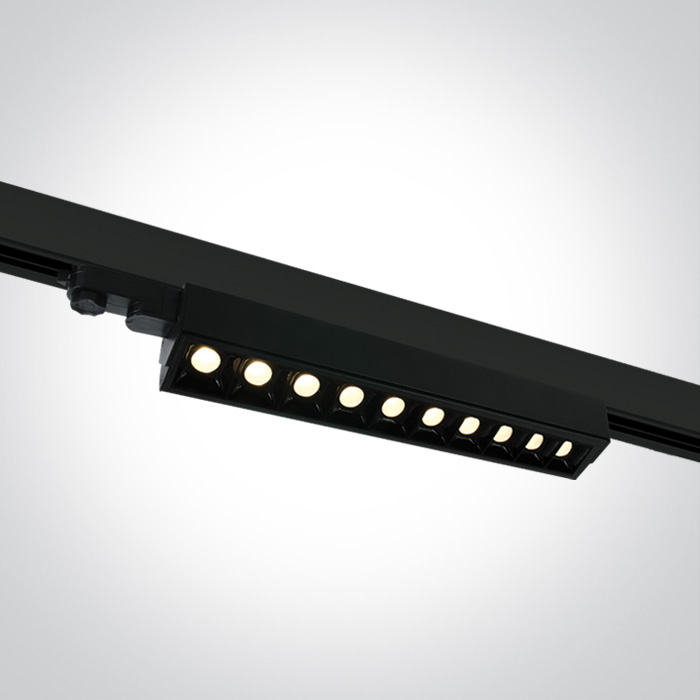

09 Track Lights > Adjustable LED Linear Track Light
65024T/B/W
10X5W COB linear track light spot +-45° adjustable, ideal for
shops and showrooms.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
09 Track Lights
Family
Adjustable LED Linear Track Light
Order Code
65024T/B/W
Colour
Black
Material
Aluminium + Plastic
Shape
Rectangular
Length
580mm
Width
60mm
Height
80mm
Track mounted
Yes
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10x5W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
1200mA
Voltage
38V
Power (Watts)
45,6W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
10
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
39,6-50,4W
Power Factor
0,9
Constant Current
Yes
1200mA
33-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
10x580lm
Light Efficiency
116lm/W
CRI
80
Beam Angle
30°
Illumination Diagram
Packing Info
Box Length
51,5cm
Box Width
9cm
Box Height
13cm
Box Weight
1.940kg
Pcs/Carton
10
Barcode
5291889058854
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
