    6320/B/V
    Accessories
    030152A
    030152A
    030156/B
    030156/B
    6320/B/V

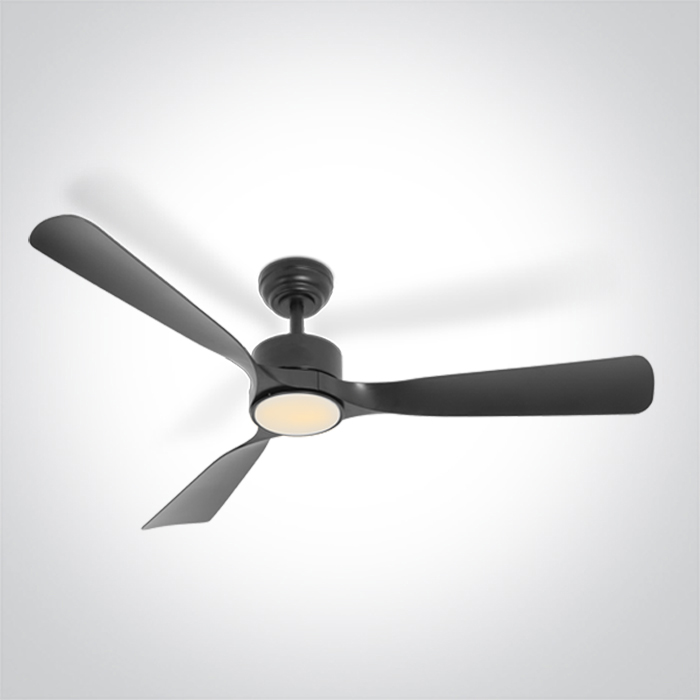

    IP54 32W Rod mounted ceiling fan complete with 22W CCT Variable LED and black ABS blades.

    6 Speeds and Winter reverse mode.

    Complete with remote control, 15cm and 30cm ceiling rods.

    Complies with EN60598-1 and any other specific standards.

    Indoor-Outdoor
    Ceiling
    CRI
    Beam Angle
    CE
    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    New 2025 Edition 3
    Family
    Fans
    Order Code
    6320/B/V
    Colour
    Black
    Material
    Metal
    Shape
    Circular
    Height
    345mm
    Diameter
    1320mm
    Surface Ceiling
    Yes
    Indoor
    Yes
    Outdoor
    Yes

    Electrical Characteristics

    +
    Fans
    Input Voltage
    220-240V
    Power (Watts)
    22W
    Safety Class
    IP Rating
    IP54
    Flow Rate
    170m³/min
    Fan Power
    32W
    Service Value
    5,3/W
    Sound Power
    46dB
    Air Velocity
    2,84meters/sec
    RPM
    195
    Speeds
    6

    Illumination Data

    +
    Colour Temperature
    3000K-4000K-5500K
    Lumen Output
    2000lm
    Light Efficiency
    90,9lm/w
    CRI
    85
    Beam Angle
    120
    Illumination Diagram

    Packing Info

    +
    Box Weight
    6.500kg
    Pcs/Carton
    1
    Barcode
    5291889084334
    HS Code
    8414510090

    Certification & Warranty

    +
    Warranty
    2 years
    Year in which the CE mark was affixed
    25
