20 Industrial & Floodlights > The Industrial IP65 UFO Range Power Adjustable & CCT V
63200N/V

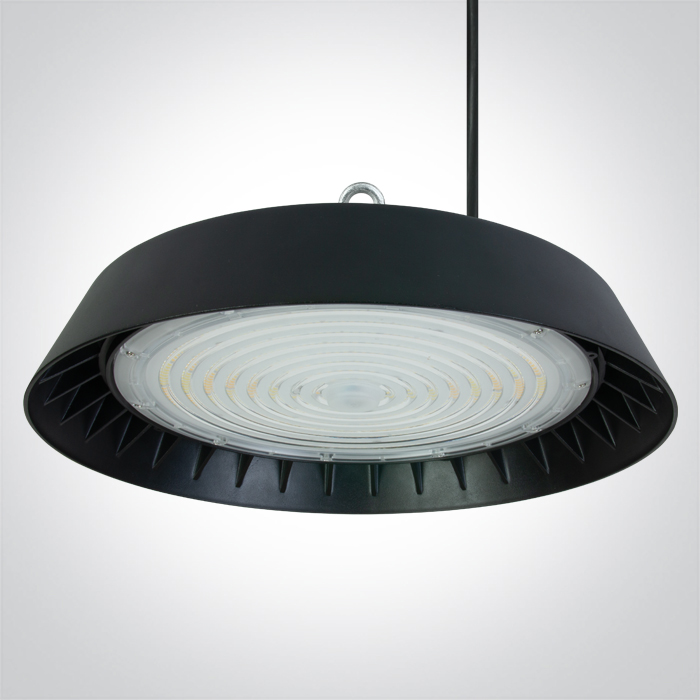

CCT Variable and power adjustable 120W/160W/200W SMD LED Industrial High Bay, IP65.
Supplied with 3-step dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 3-step dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

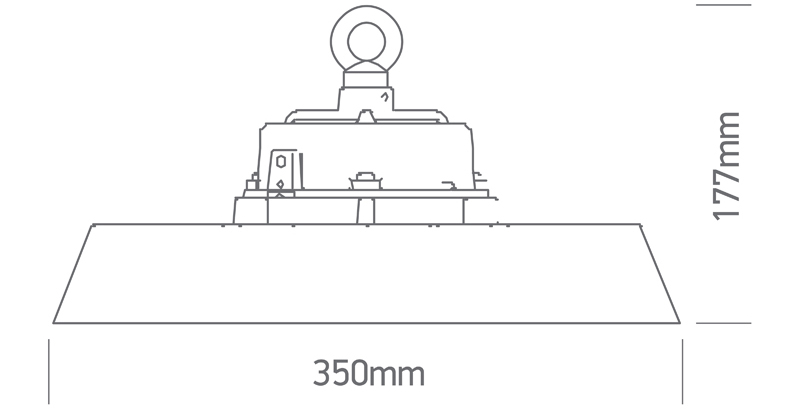

Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
The Industrial IP65 UFO Range Power Adjustable & CCT V
Order Code
63200N/V
Colour
Black
Material
Aluminium
Diffuser Material
PC
Shape
Circular
Height
177mm
Diameter
350mm
Suspended Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
120W/160W/200W
IP Rating
IP65
Light Source
LED built in
Dimmable
Yes
Dimmer type
3-Step Dimming
Cable Length
150cm
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD 2835
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,9
Constant Current
Yes
Illumination Data
Colour Temperature
4000K-4700K-5700K
Lumen Output
30000lm (200W)
Light Efficiency
150lm/W
CRI
80
Beam Angle
90°
Illumination Diagram
Packing Info
Box Weight
3.500kg
Pcs/Carton
1
Barcode
5291889078364
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Average Lifetime
36000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
23
