20 Industrial & Floodlights > The Industrial IP65 UFO Range CCT V & PV & BV
63200NB/V

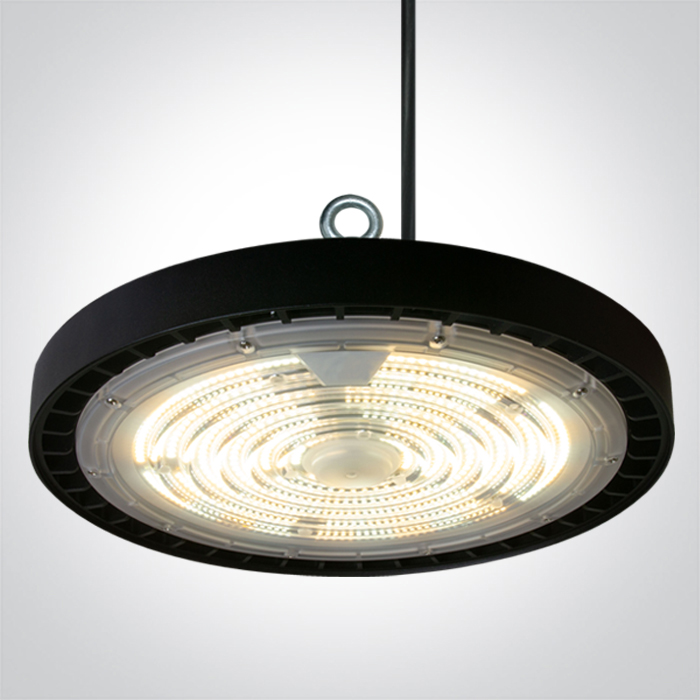

200W Power Variable, CCT Variable and Beam Variable LED High Bay.
Supplied with Power Variable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with Power Variable LED driver.
Complies with standard EN60598-1 and any other specific standards.

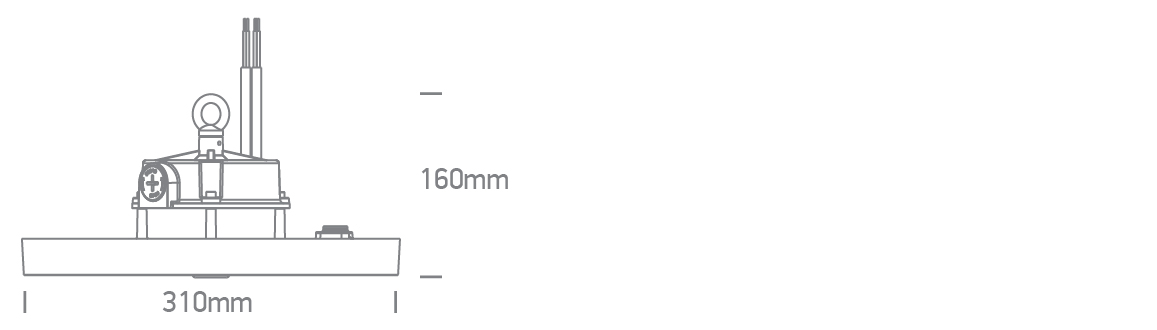

Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
The Industrial IP65 UFO Range CCT V & PV & BV
Order Code
63200NB/V
Colour
Black
Material
Aluminium
Diffuser Material
PC
Shape
Circular
Height
160mm
Diameter
310mm
Suspended Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
9
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
100W/150W/200W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
50cm
F Mark
Fitting
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
30000lm (200W)
Light Efficiency
150lm/W
CRI
80
Beam Angle
Beam Variable - 70° / 90° / 110°
Illumination Diagram
Packing Info
Box Weight
2.900kg
Pcs/Carton
1
Barcode
5291889088806
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
26
