New 2025 Edition 2 > Decorative

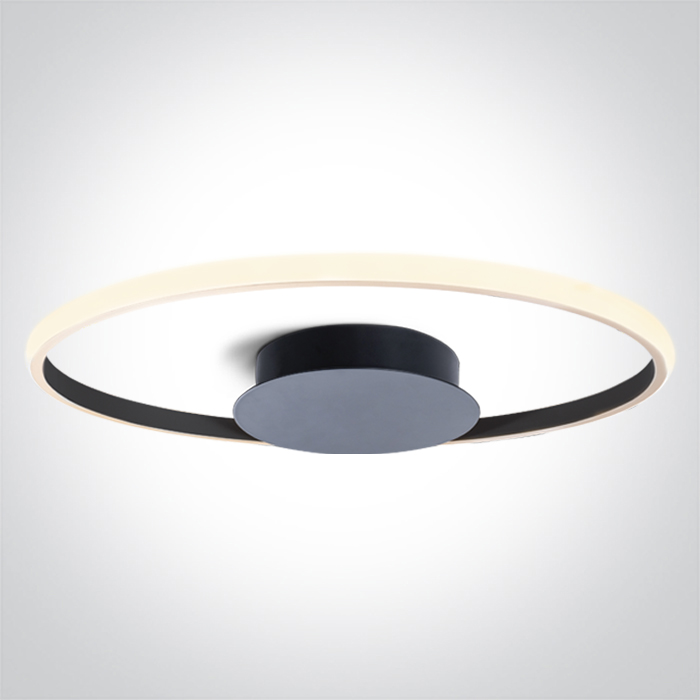

63154B/B/W
20W LED wall or ceiling mounted light.
Complete with dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Decorative
Order Code
63154B/B/W
Colour
Black
Material
Aluminium
Length
440mm
Width
330mm
Height
40mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
500mA
IP Rating
IP20
Illumination Data
Colour Temperature
3000K
Lumen Output
1400lm
Light Efficiency
70lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.110kg
Pcs/Carton
1
Barcode
5291889080428
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
