20 Industrial & Floodlights > The Industrial IP65 LED UFO Range Aluminium
63150N/C

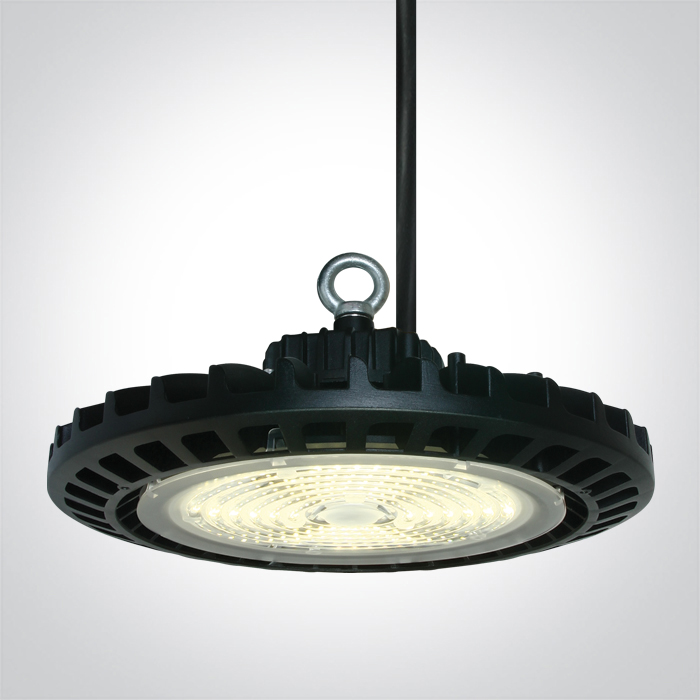

150W SMD LED Industrial High Bay, IP65.
Supplied with dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
The Industrial IP65 LED UFO Range Aluminium
Order Code
63150N/C
Colour
Black
Material
Aluminium
Shape
Circular
Height
170mm
Diameter
270mm
Surface Ceiling
Yes
Surface Wall
Yes
Suspended Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
150W
IP Rating
IP65
Light Source
LED built in
Dimmable
Yes
Dimmer type
1-10V
Cable Length
30cm
F Mark
Fitting
Input Type
Constant Current
Input Current
750mA
Voltage
190V
Power (Watts)
142,5W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Osram
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
135-195W
Power Factor
0,9
Constant Current
Yes
750mA
180-260V
IP Rating
IP65
Safety Class
Illumination Data
Colour Temperature
4000K
Lumen Output
19500lm
Light Efficiency
130lm/W
CRI
80
Beam Angle
90°
Illumination Diagram
Packing Info
Box Weight
2.900kg
Pcs/Carton
1
Barcode
5291889067955
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
