20 Industrial & Floodlights > Linear High Bay
63150L/C

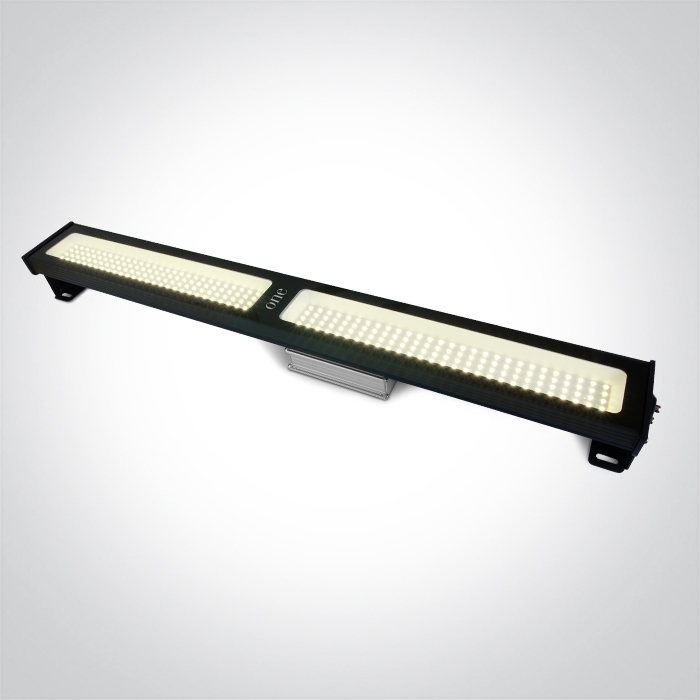

150W SMD LED Linear Industrial High Bay.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

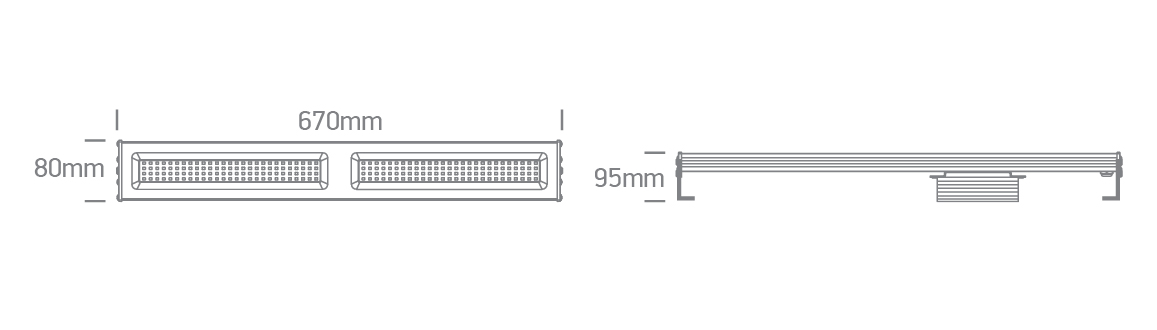

Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
Linear High Bay
Order Code
63150L/C
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
670mm
Width
80mm
Height
95mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
6
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
120-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
150W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
100cm
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
120-240V
Safety Class
Illumination Data
Colour Temperature
4000K
Lumen Output
15000lm
Light Efficiency
100lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
1.980kg
Pcs/Carton
4
Barcode
5291889088752
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Year in which the CE mark was affixed
25
