New 2025 Edition 2 > Track Lights
63108AT/W/W

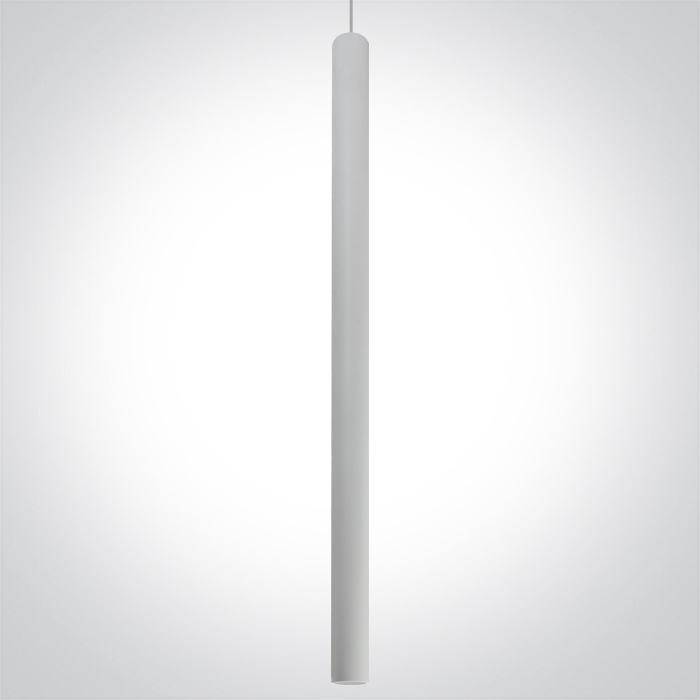

8W COB LED Cylinder track mounted pendant .
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Track Lights
Order Code
63108AT/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
600mm
Diameter
32mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Safety Class
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
300mA
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
560lm
Light Efficiency
70lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Packing Info
Box Weight
0.680kg
Pcs/Carton
20
Barcode
5291889080268
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
