New 2025 Edition 2 > Decorative
63076D/B/W

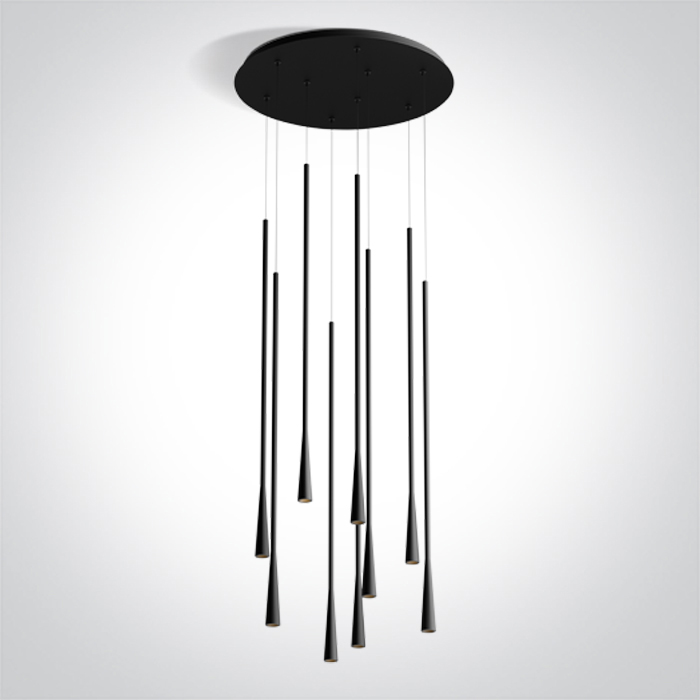

9x5W suspended lights.
Complete with non-dimmable drivers.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable drivers.
Complies with standard EN60598-1 and any other specific standards.

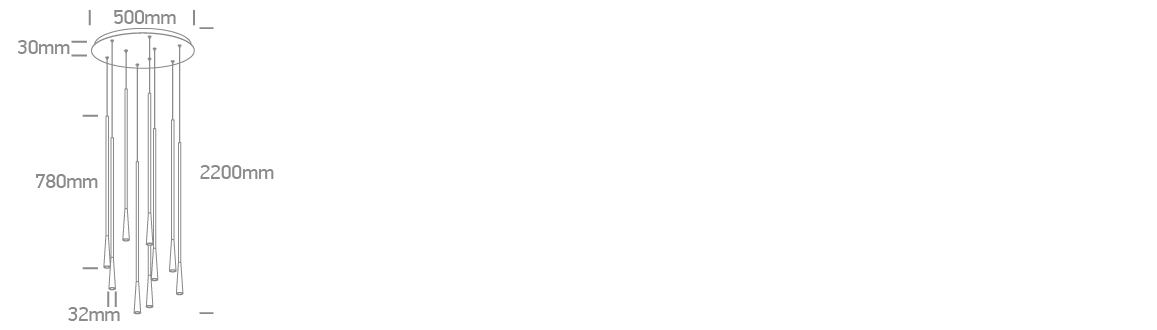

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Decorative
Order Code
63076D/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
780mm
Diameter
32mm
Cutout Hole Diameter
500mm
Surface Ceiling
Yes
Suspended Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9x5W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP20
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
2700lm
Light Efficiency
60lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
7.800kg
Pcs/Carton
1
Barcode
5291889081999
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
