New 2025 Edition 2 > Decorative

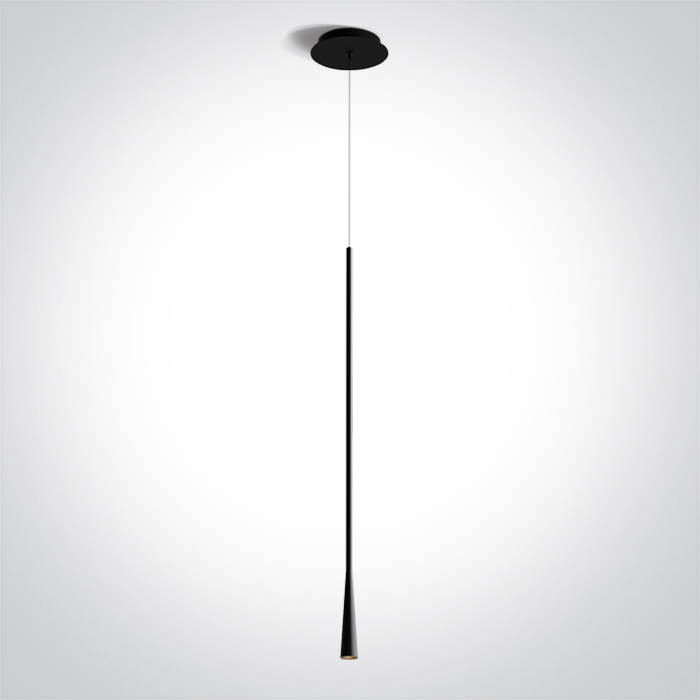

63076A/B/W
5W LED Pendant , IP20 suitable for residential and commercial application .
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Decorative
Order Code
63076A/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
2200mm
Diameter
32mm
Cutout Hole Diameter
150mm
Surface Ceiling
Yes
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
5W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Safety Class
Power (Watts)
5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
500mA
5-12V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
300lm
Light Efficiency
60lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
1.116kg
Pcs/Carton
6
Barcode
5291889081975
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
