15 Decorative > The Crystal Swirl Range

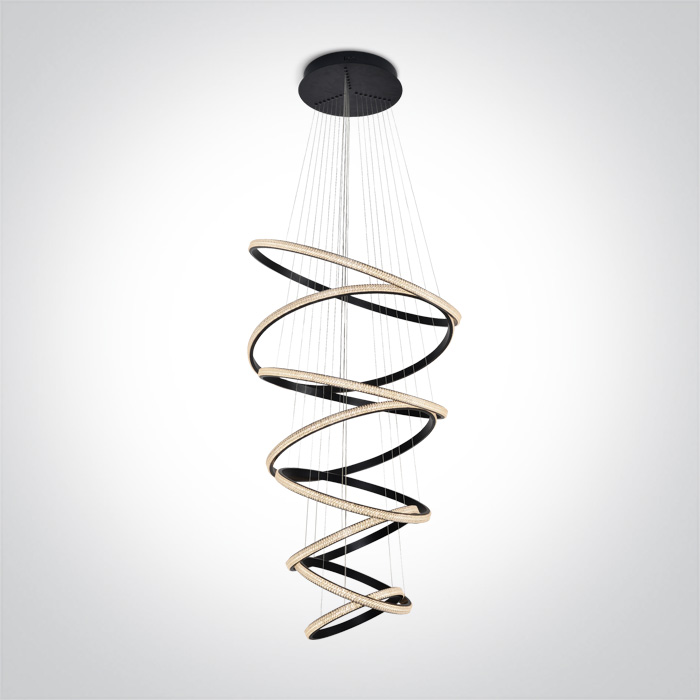

63054C/B
150W LED Decorative Pendant.
Complete with 24V driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 24V driver.
Complies with standard EN60598-1 and any other specific standards.

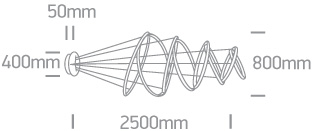

Dimensions
Downloads
Physical Specification
Item Group
15 Decorative
Family
The Crystal Swirl Range
Order Code
63054C/B
Colour
Black
Material
Aluminium + Steel
Diffuser Material
Crystal
Shape
Circular
Height
2500mm
Diameter
800mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
150W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
150W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
150W
Power Factor
0,9
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
0
Operating Temp
0
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
8500lm
Light Efficiency
50lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
10.900kg
Pcs/Carton
1
Barcode
5291889065685
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
