15 Decorative > The Glass Stone Series
.jpg)

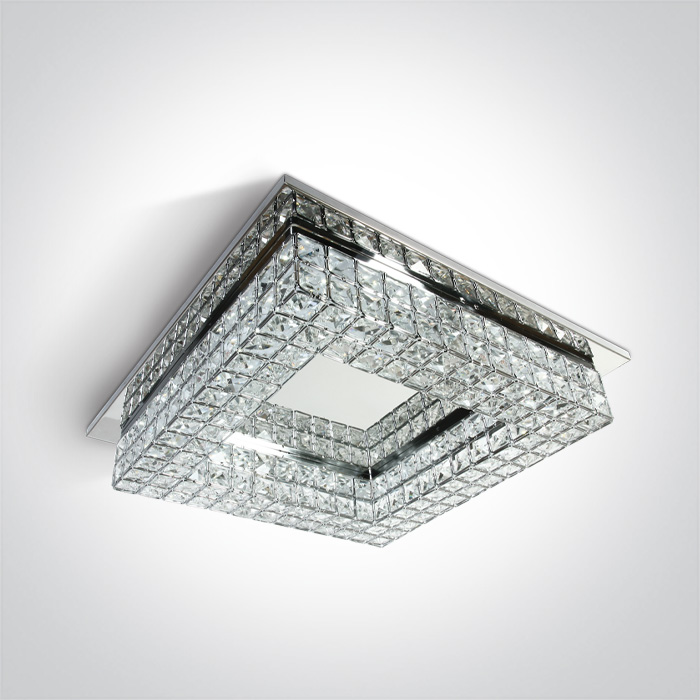

62184B/C/W
24W LED glass decorative light IP20.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

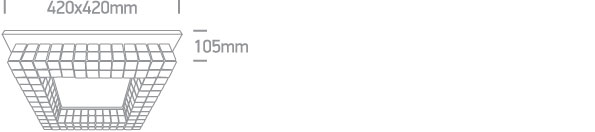

Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
15 Decorative
Family
The Glass Stone Series
Order Code
62184B/C/W
Colour
Chrome
Material
Metal + glass
Shape
Rectangular
Length
420mm
Width
420mm
Height
105mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
24W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
75V
Power (Watts)
22,5W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
20-30W
Power Factor
0,95
Constant Current
Yes
300mA
67-100V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1300lm
Light Efficiency
54,17lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
6.000kg
Pcs/Carton
1
Barcode
5291889074540
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
