13 Plafo > Decorative Plafo

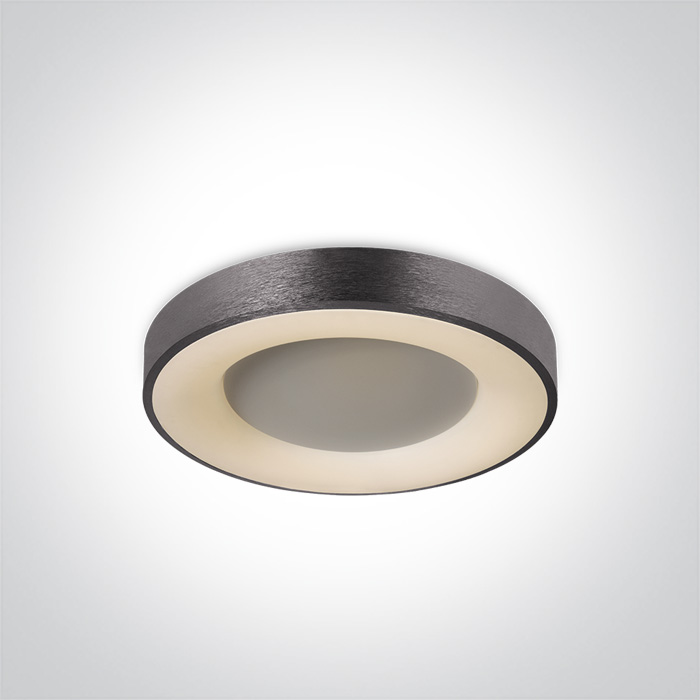

62182/BAN/W
40W LED Decorative Plafo, IP20, suitable for residential and
commercial application.
Complete with 1050mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1050mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
Decorative Plafo
Order Code
62182/BAN/W
Colour
Brushed Anthracite
Material
Aluminium
Shape
Circular
Height
87mm
Diameter
480mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1050mA
Voltage
36V
Power (Watts)
37,8W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
24-42W
Power Factor
0,9
Constant Current
Yes
1050mA
23-40V
IP Rating
IP20
Safety Class
Dimmable
No
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
3400lm
Light Efficiency
85lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
4.100kg
Pcs/Carton
1
Barcode
5291889065968
HS Code
9405413990
Energy Label
Energy Class
Energy Consumption
40KWh/1000h
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
