15 Decorative > LED Circle Rings
62156D/B/W

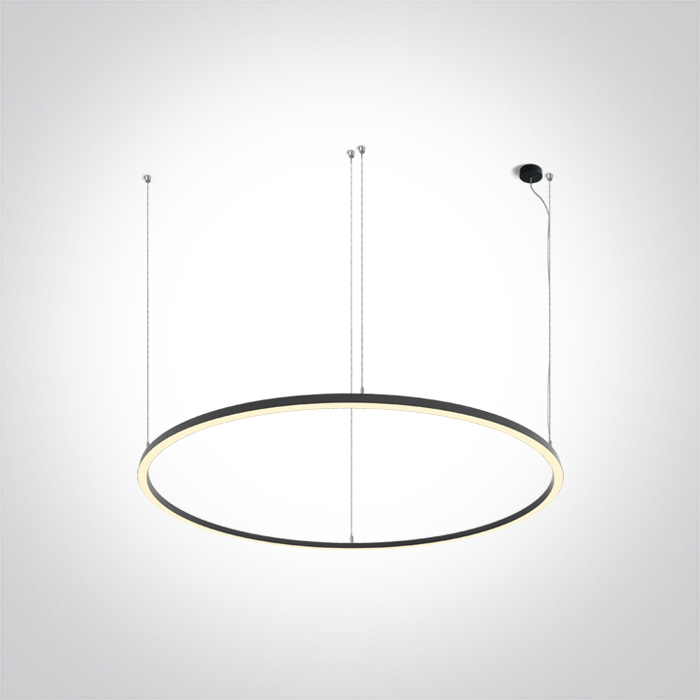

100W LED Pendant , IP20 suitable for residential and commercial application .
Complete with 2x1200mA drivers.
Complies with standard EN60598-1 and any other specific standards.
Complete with 2x1200mA drivers.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
15 Decorative
Family
LED Circle Rings
Order Code
62156D/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
3000mm
Diameter
1800mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
100W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1200mA
Voltage
2x40V
Power (Watts)
96W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Bridgelux
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
36-50,4W
Power Factor
0,9
Constant Current
Yes
1200mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
6500lm
Light Efficiency
65lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
5.800kg
Pcs/Carton
1
Carton Weight
9,2Kg
Barcode
5291889064664
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
