13 Plafo > The LED Plafo Range
62154/B/W

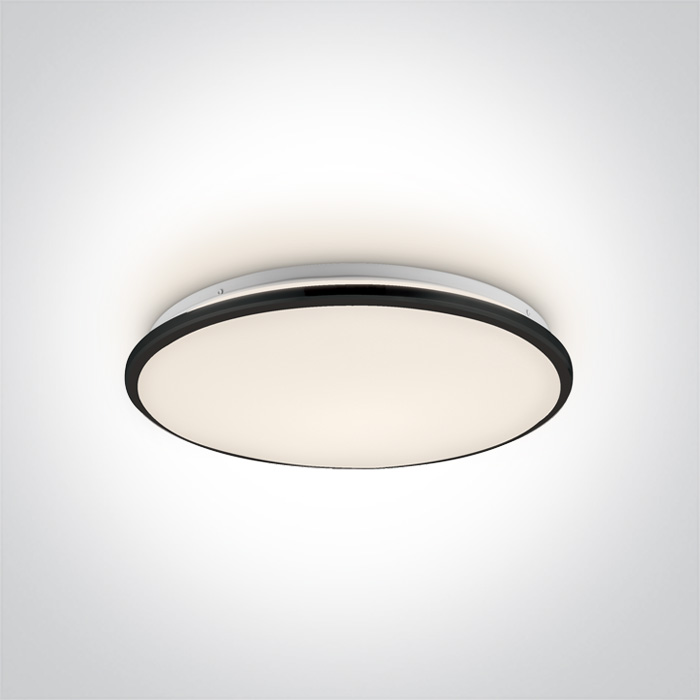

24W LED slim plafo light, IP20, suitable for residential and commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Plafo Range
Order Code
62154/B/W
Colour
Black
Material
Iron
Diffuser Material
PC
Shape
Circular
Height
57mm
Diameter
380mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
24W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
200mA
Voltage
110V
Power (Watts)
22W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
20-23W
Power Factor
0,9
Constant Current
Yes
200mA
100-115V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1560lm
Light Efficiency
65lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.220kg
Pcs/Carton
10
Barcode
5291889063773
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
