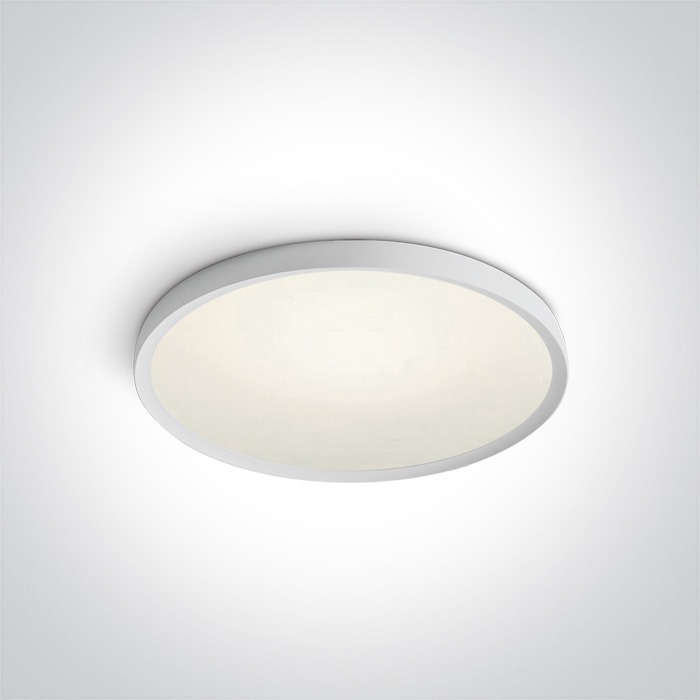

13 Plafo > The Ultra Slim LED Plafo Aluminium
62152/W/C
40W LED slim plafo light, IP20, suitable for residential and commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The Ultra Slim LED Plafo Aluminium
Order Code
62152/W/C
Colour
White
Material
Aluminium
Shape
Circular
Height
33mm
Diameter
600mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
950mA
Voltage
42V
Power (Watts)
38,7W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
27-40,5W
Power Factor
0,9
Constant Current
Yes
950mA
33-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Manufacturer
3AAA
Illumination Data
Colour Temperature
4000K
Lumen Output
2800lm
Light Efficiency
70lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
4.940kg
Pcs/Carton
5
Barcode
5291889063490
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
