13 Plafo > The LED Project Plafo Metal
62150D/W/W

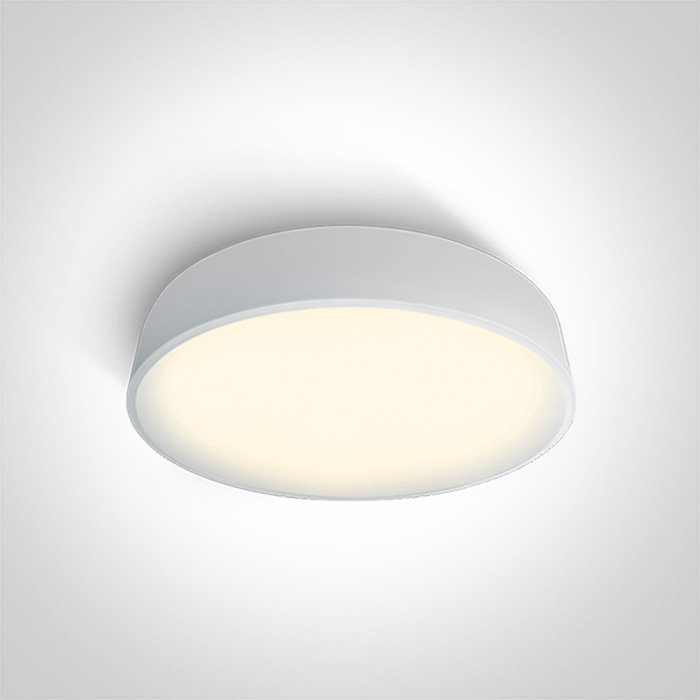

50W LED slim plafo light, IP20, suitable for residential and
commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Project Plafo Metal
Order Code
62150D/W/W
Colour
White
Material
Metal
Shape
Circular
Height
106mm
Diameter
600mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1400mA
Voltage
34V
Power (Watts)
47,6W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 5630
LED Brand
Bridgelux
LED Number
100
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
35-50,4W
Power Factor
0,9
Constant Current
Yes
1400mA
25-36V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
4250lm
Light Efficiency
85lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
65cm
Box Width
65cm
Box Height
15cm
Box Weight
4.300kg
Pcs/Carton
1
Carton Length
65cm
Carton Width
65cm
Carton Height
15cm
Carton Weight
5Kg
Barcode
5291889046769
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
