15 Decorative > The Cloud Series

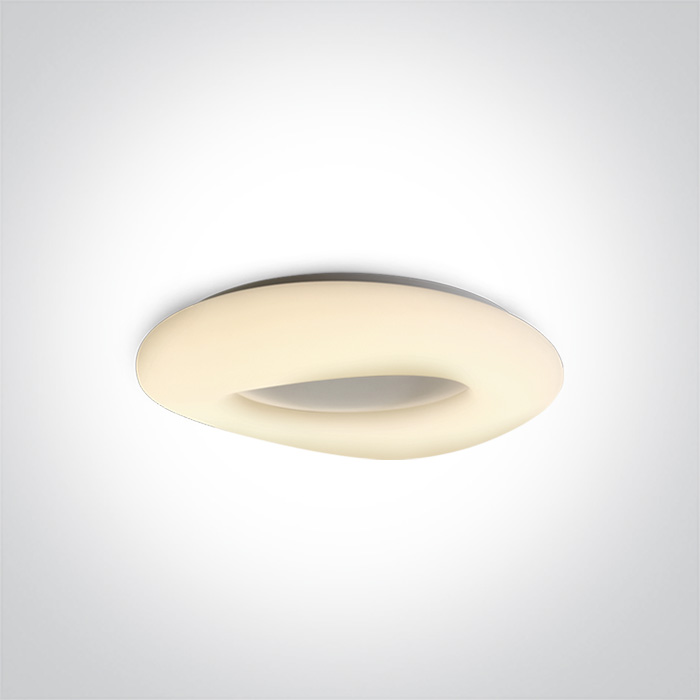

62148B/W
40W LED Cloud Plafo , IP20 suitable for residential and commercial application .
Complete with 1000mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1000mA driver.
Complies with standard EN60598-1 and any other specific standards.

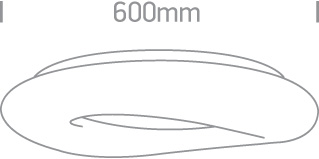

Dimensions
Downloads
Physical Specification
Item Group
15 Decorative
Family
The Cloud Series
Order Code
62148B/W
Colour
White
Material
Metal
Diffuser Material
PC
Shape
Circular
Diameter
600mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1000mA
Voltage
38V
Power (Watts)
38W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
27-42W
Power Factor
0,9
Constant Current
Yes
1000mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
3200lm
Light Efficiency
80lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
5.900kg
Pcs/Carton
1
Barcode
5291889062790
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
