13 Plafo > The LED Slim Line Plafo

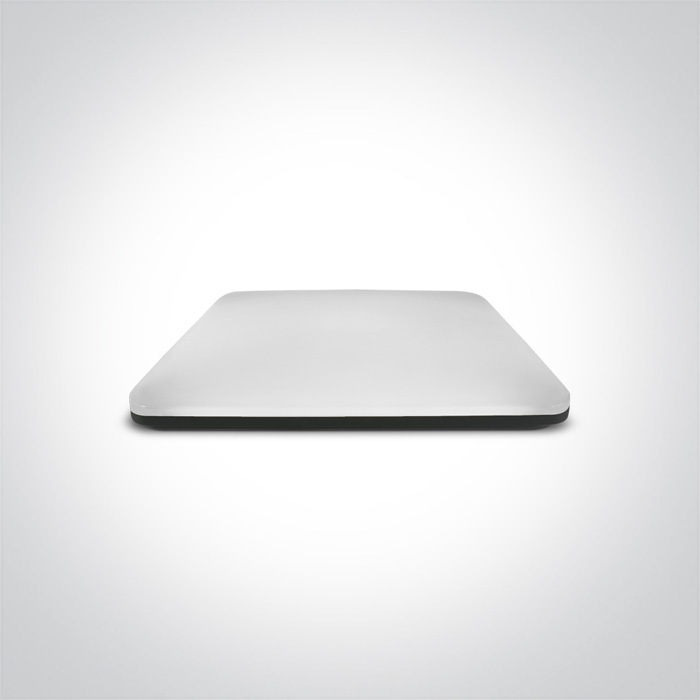

62146A/B/W
50W LED slim plafo light, IP20, suitable for residential and commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Slim Line Plafo
Order Code
62146A/B/W
Colour
Black
Material
Iron
Diffuser Material
Plastic
Shape
Rectangular
Length
500mm
Width
500mm
Height
75mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
100V
Power (Watts)
50W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
55-60W
Power Factor
0,9
Constant Current
Yes
Voltage Range
100-110V
Output
480mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
4100lm
Light Efficiency
82lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
3.400kg
Pcs/Carton
1
Barcode
5291889064657
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
