New 2025 Edition 3 > Plafo
62144N/B/V

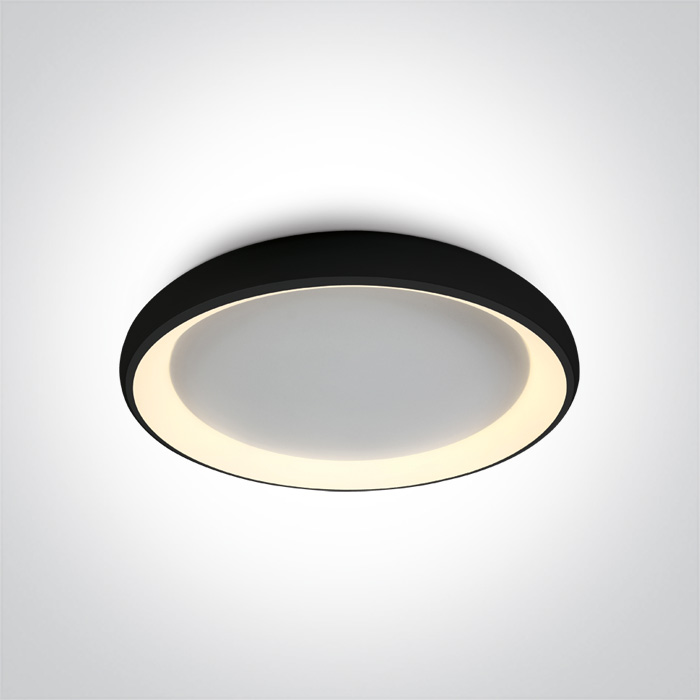

50W LED CCT Variable Plafo, IP20.
Complete with 1200mA dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1200mA dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Plafo
Order Code
62144N/B/V
Colour
Black
Material
Aluminium
Shape
Circular
Height
85mm
Diameter
610mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
1200mA
Illumination Data
Colour Temperature
2700K-3000K-4000K
Lumen Output
4250lm
Light Efficiency
85lm/W
CRI
90
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
5.500kg
Pcs/Carton
1
Barcode
5291889081753
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
