13 Plafo > The LED Decorative Plafo

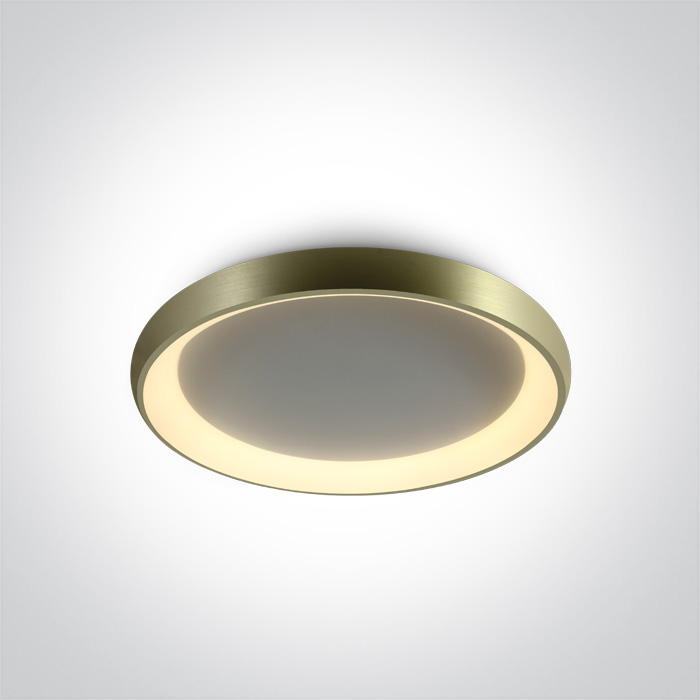

62144N/BBS/W
50W LED Plafo, IP20 suitable for residential and commercial application.
Complete with 1200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Decorative Plafo
Order Code
62144N/BBS/W
Colour
Brushed Brass
Material
Aluminium
Shape
Circular
Height
85mm
Diameter
610mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1200mA
Voltage
40V
Power (Watts)
48W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Bridgelux
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
36-50,4W
Power Factor
0,9
Constant Current
Yes
1200mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
4250lm
Light Efficiency
85lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
68cm
Box Width
68cm
Box Height
12cm
Box Weight
5.500kg
Pcs/Carton
1
Carton Length
68cm
Carton Width
68cm
Carton Height
12cm
Carton Weight
4,9Kg
Barcode
5291889071808
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
