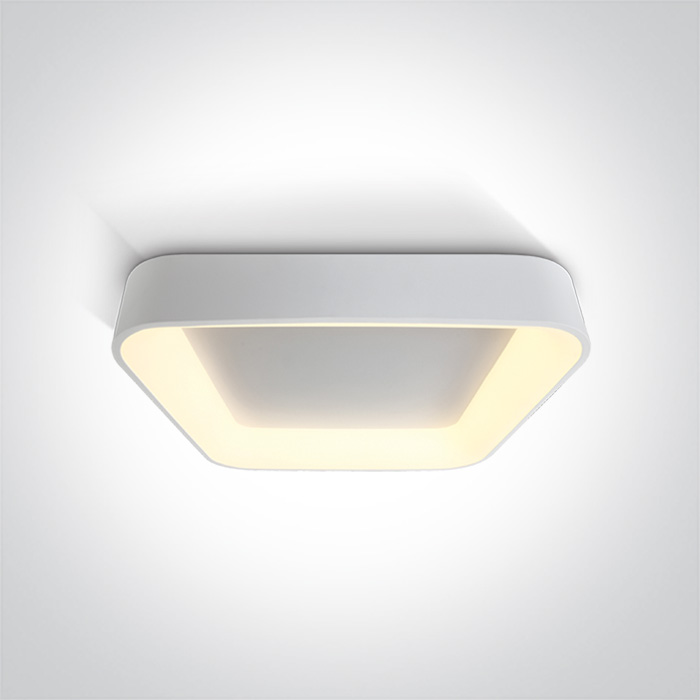

13 Plafo > The LED Decorative Plafo Square
62142NA/W/W
50W LED Decorative Plafo, IP20, suitable for residential and
commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

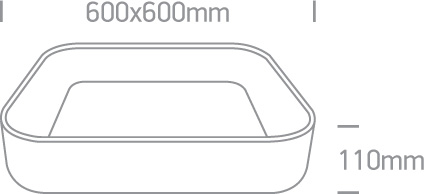

Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Decorative Plafo Square
Order Code
62142NA/W/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
600mm
Width
600mm
Height
110mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1200mA
Voltage
40V
Power (Watts)
48W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Bridgelux
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
36-50,4W
Power Factor
0,9
Constant Current
Yes
1200mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
4250lm
Light Efficiency
85lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
65cm
Box Width
65cm
Box Height
16cm
Box Weight
7.800kg
Pcs/Carton
1
Carton Length
65cm
Carton Width
65cm
Carton Height
16cm
Carton Weight
6,4Kg
Barcode
5291889056874
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
