13 Plafo > The LED Decorative Plafo Round
62142N/AN/W

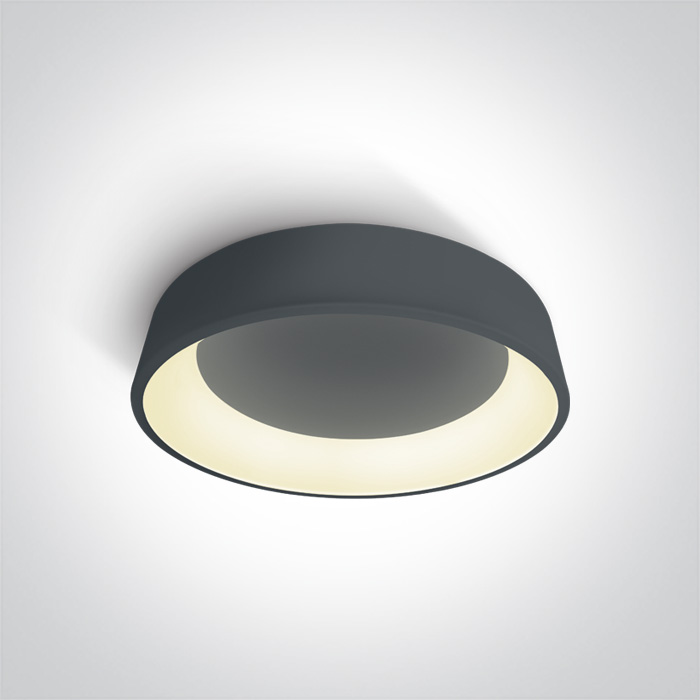

42W LED Decorative Plafo, IP20, suitable for residential and
commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Decorative Plafo Round
Order Code
62142N/AN/W
Colour
Anthracite
Material
Aluminium
Shape
Circular
Height
132mm
Diameter
600mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
42W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1050mA
Voltage
38V
Power (Watts)
39,9W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Bridgelux
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
34,65-44,1W
Power Factor
0,9
Constant Current
Yes
1050mA
33-42v
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
3570lm
Light Efficiency
85lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
3.800kg
Pcs/Carton
1
Barcode
5291889046820
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
