New 2025 Edition 2 > Plafo
62134N/B/V

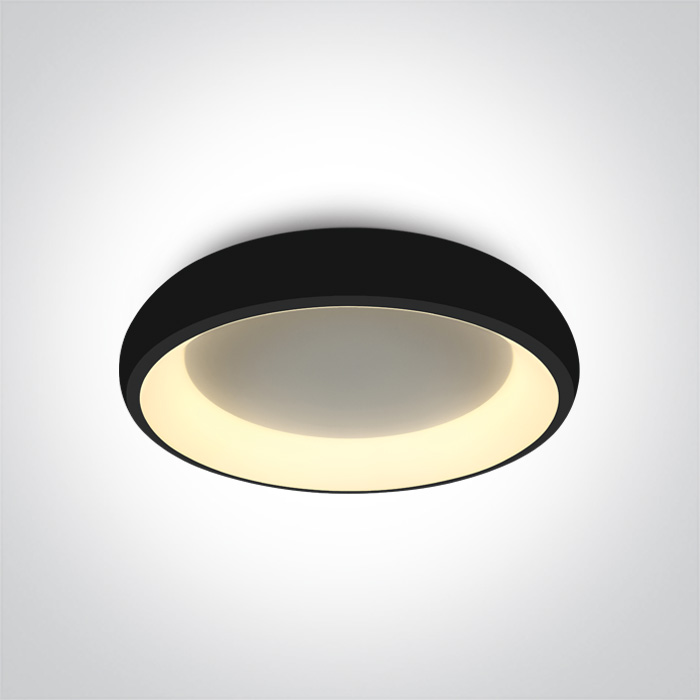

CCT Variable 30W LED Decorative Plafo, IP20. Suitable for residential and commercial applications.
Supplied with dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Plafo
Order Code
62134N/B/V
Colour
Black
Material
Aluminium
Diffuser Material
Acrylic
Shape
Circular
Height
85mm
Diameter
400mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
F Mark
Fitting
Input Type
Constant Current
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
700mA
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Triac
Illumination Data
Colour Temperature
2700K-3000K-4000K
Lumen Output
2550lm
Light Efficiency
85lm/W
CRI
90
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
2.800kg
Pcs/Carton
1
Barcode
5291889080077
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
