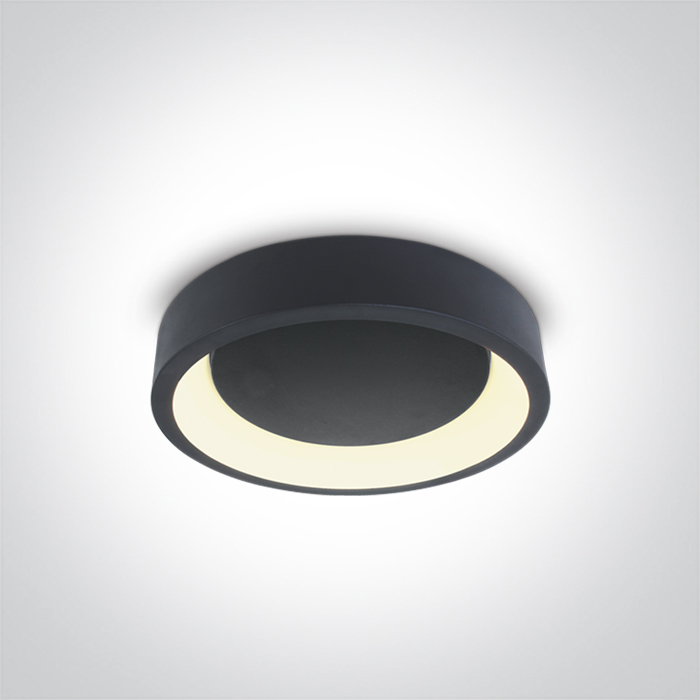

13 Plafo > The LED Decorative Plafo Round CCT V
62132N/AN/V
CCT Variable 32W LED Decorative Plafo, IP20. Suitable for residential and
commercial applications.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Decorative Plafo Round CCT V
Order Code
62132N/AN/V
Colour
Anthracite
Material
Aluminium
Shape
Circular
Height
132mm
Diameter
455mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
32W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
800mA
Voltage
40V
Power (Watts)
32W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12W-33,6W
Power Factor
0,9
Constant Current
Yes
800mA
15-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
2700K-3000K-4000K
Lumen Output
2720lm
Light Efficiency
85lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
2.400kg
Pcs/Carton
1
Barcode
5291889078128
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
36000hours L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
23
