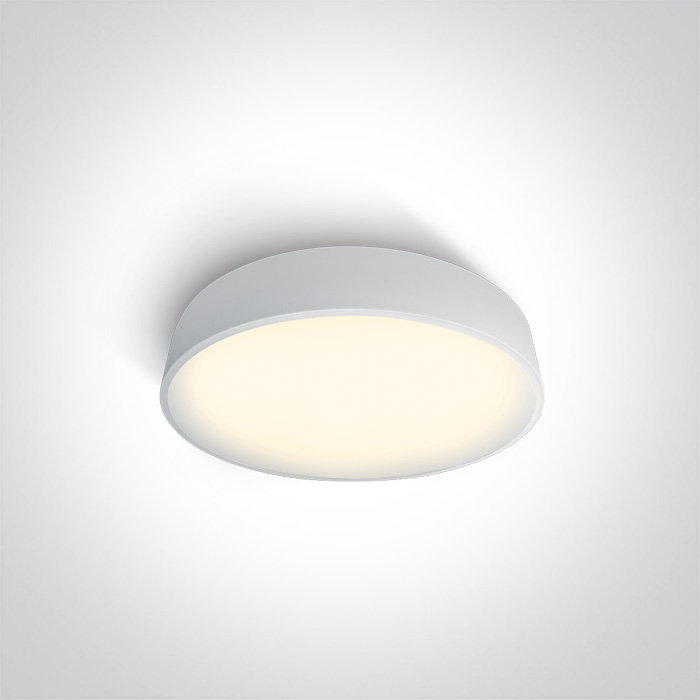

13 Plafo > The LED Project Plafo Metal
62118D/W/W
20W LED slim plafo light, IP20, suitable for residential and
commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Project Plafo Metal
Order Code
62118D/W/W
Colour
White
Material
Metal
Shape
Circular
Height
80mm
Diameter
300mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
38V
Power (Watts)
19W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Bridgelux
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13,5-21W
Power Factor
0,9
Constant Current
Yes
500mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1700lm
Light Efficiency
85lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
1.200kg
Pcs/Carton
1
Barcode
5291889048831
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
