13 Plafo > The LED Plafo Range

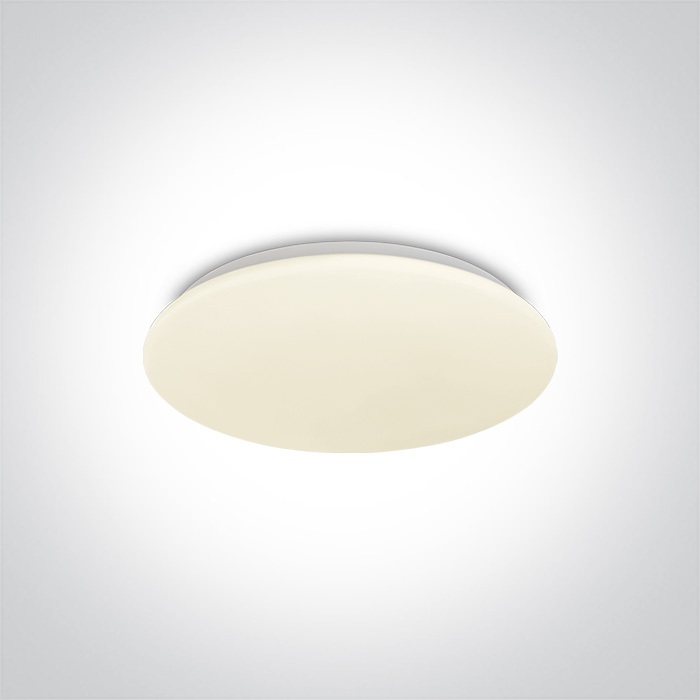

62026B/W
24W LED slim plafo light, IP20, suitable for residential and commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Plafo Range
Order Code
62026B/W
Colour
White
Material
Metal
Diffuser Material
Plastic
Shape
Circular
Height
65mm
Diameter
390mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
24W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
135mA
Voltage
170V
Power (Watts)
23W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
21-23,8W
Power Factor
0,9
Constant Current
Yes
Voltage Range
150-170v
Output
140mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1700lm
Light Efficiency
70,83lm/W
Illumination Diagram
Packing Info
Box Weight
1.200kg
Pcs/Carton
5
Barcode
5291889063742
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
