13 Plafo > The Classic Plafo

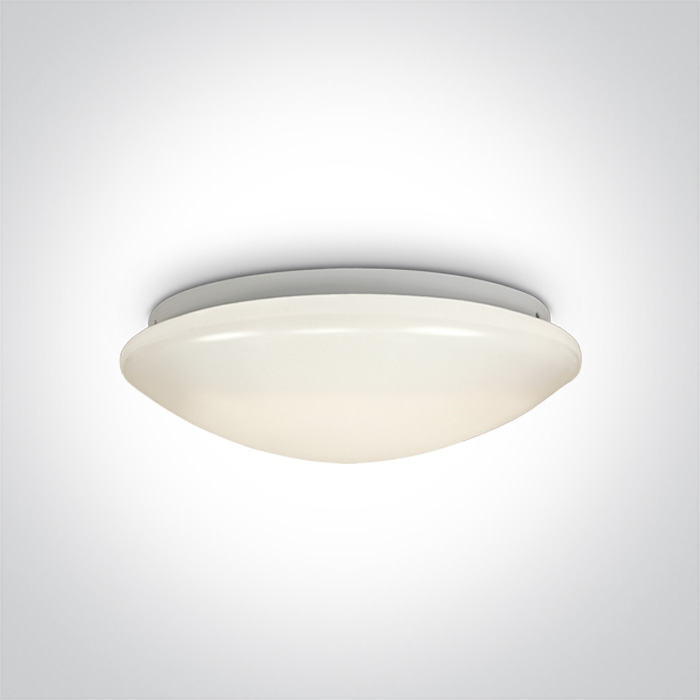

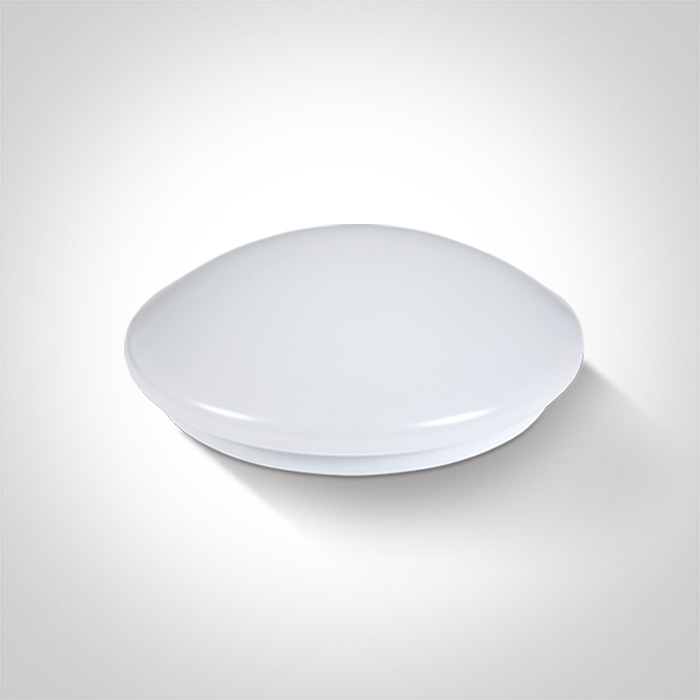

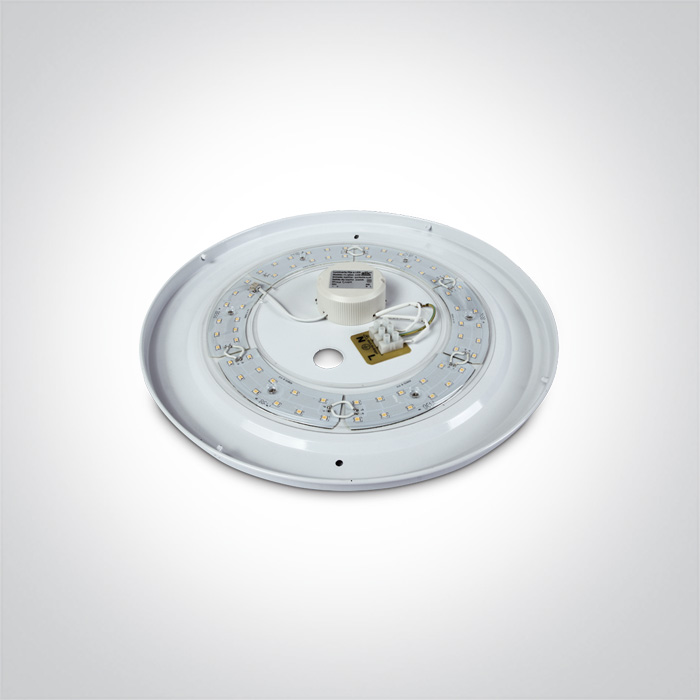

62024C/W
26W LED slim plafo light, IP20, suitable for residential and commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

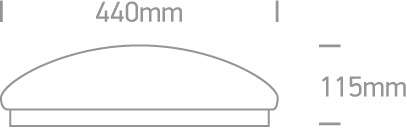

Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The Classic Plafo
Order Code
62024C/W
Colour
White
Material
Metal
Diffuser Material
Plastic
Shape
Circular
Height
115mm
Diameter
440mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
26W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
36V
Power (Watts)
25,2W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
19-29,4W
Power Factor
0,9
Constant Current
Yes
700mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1600lm
Light Efficiency
61,53lm/W
Illumination Diagram
Packing Info
Box Length
44cm
Box Width
44cm
Box Height
12,5cm
Box Weight
1.540kg
Pcs/Carton
5
Barcode
5291889036654
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
14
