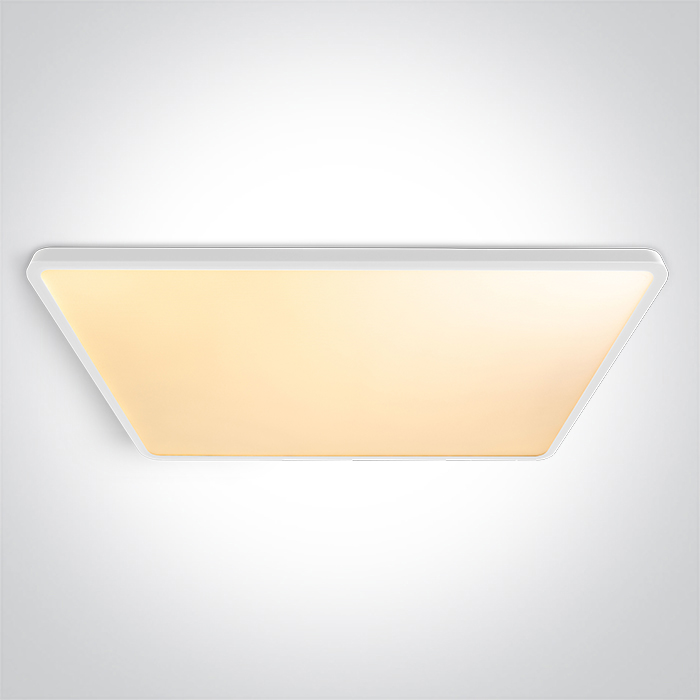

13 Plafo > The Super Slim UGR19 Range Rectangular CCT V
62020PU/W/V
60W CCT Variable LED slim plafo.
Supplied with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

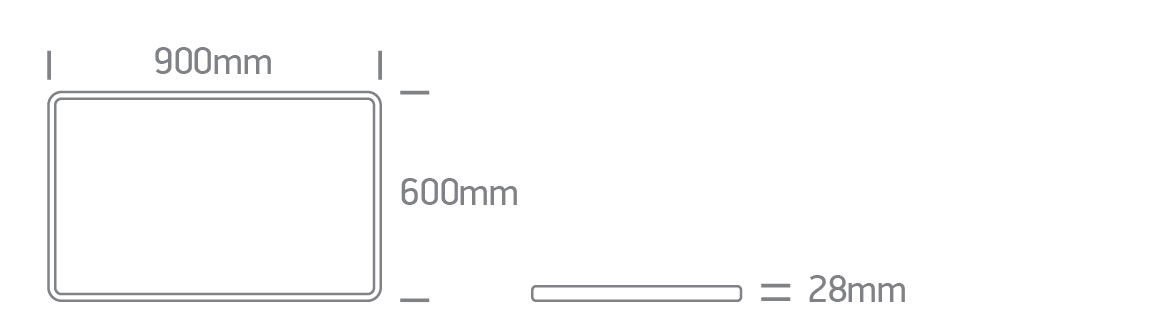

Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The Super Slim UGR19 Range Rectangular CCT V
Order Code
62020PU/W/V
Colour
White
Material
ABS
Shape
Rectangular
Length
900mm
Width
600mm
Height
28mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
60W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Code
2800K-3300K-4000K
Lumen Output
4200lm
Light Efficiency
70lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
6.700kg
Pcs/Carton
4
Barcode
5291889092452
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
26
