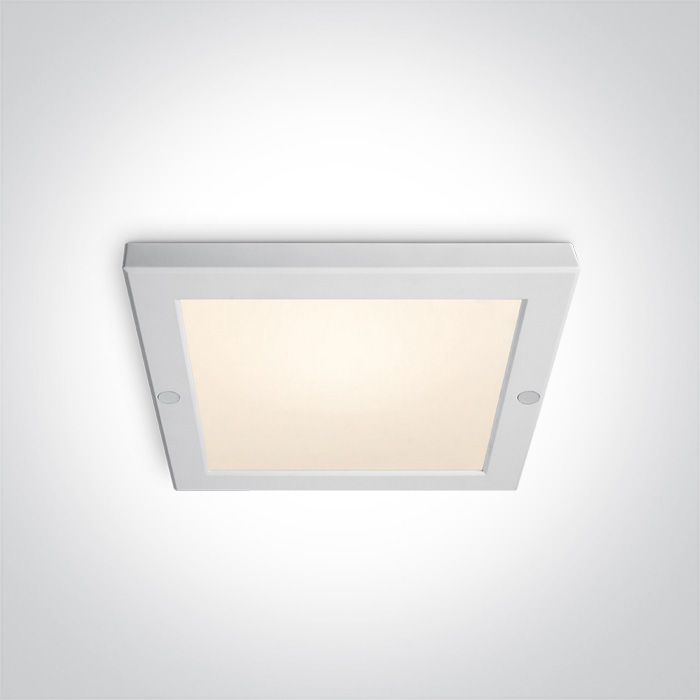

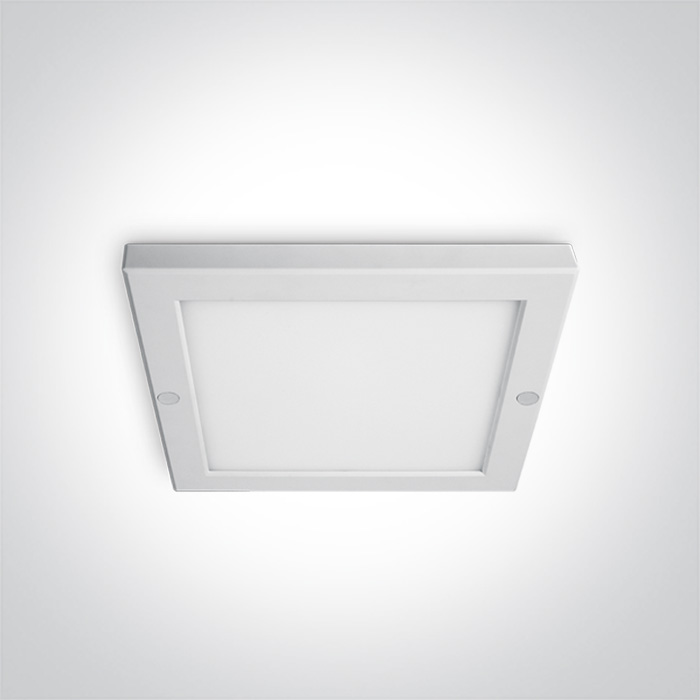

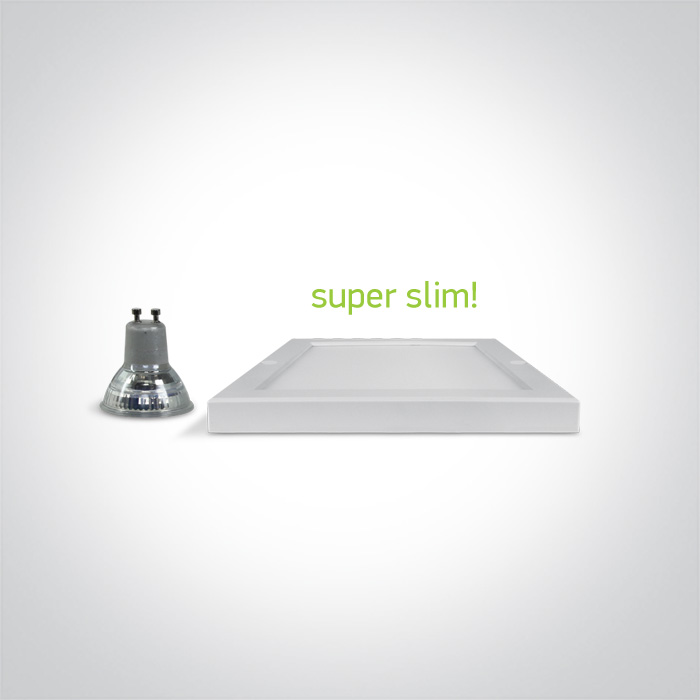

13 Plafo > The Ultra Slim LED Panel Plafo
62018AF/W/W
18W LED slim plafo light, IP40, suitable for residential and
commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

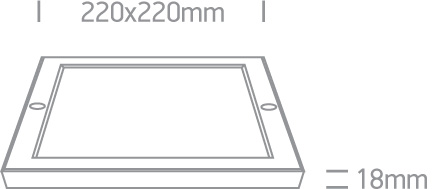

Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The Ultra Slim LED Panel Plafo
Order Code
62018AF/W/W
Colour
White
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
220mm
Width
220mm
Height
18mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
IK Rating
4
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
18W
IP Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP40
Light Source
LED built in
LED Type
SMD 4014
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
18W
Constant Current
Yes
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
1400lm
Light Efficiency
77,78lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
26,5cm
Box Width
23cm
Box Height
3cm
Box Weight
0.545kg
Pcs/Carton
20
Barcode
5291889051831
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
