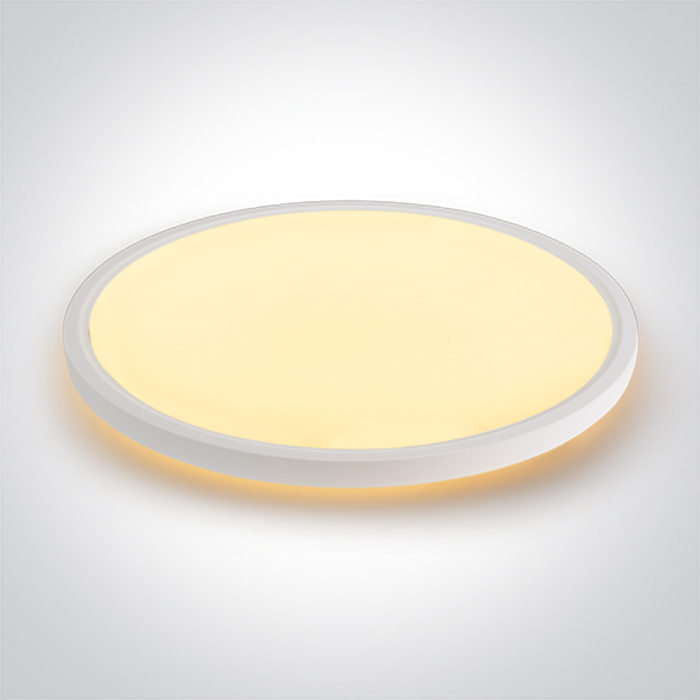

13 Plafo > The Floating Backlit Plafo CCT V
62002D/W/V
45W+5W CCT Variable LED backlit plafo.
Supplied with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The Floating Backlit Plafo CCT V
Order Code
62002D/W/V
Colour
White
Material
ABS + PC
Shape
Circular
Height
41mm
Diameter
600mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
45W+5W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Safety Class
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Code
2700K-3200K-4000K
Lumen Output
4500lm
Light Efficiency
90lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
3.530kg
Pcs/Carton
4
Barcode
5291889092810
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
26
