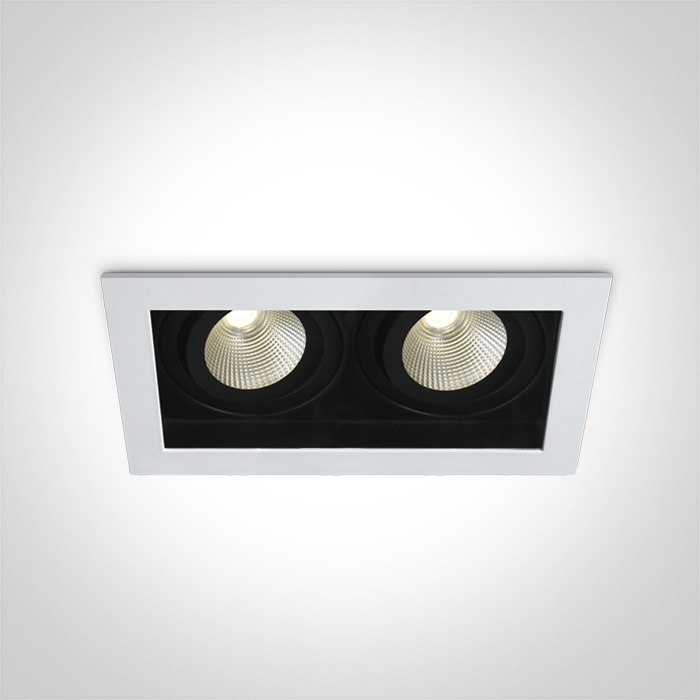

04 Recessed Spots Adjustable LED > The IP44 COB Shop & Hotel Range
51212E/W/W
2x12W LED Dark Light Recessed adjustable spot, IP20.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The IP44 COB Shop & Hotel Range
Order Code
51212E/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
188mm
Width
100mm
Height
93mm
Cutout Hole Width
175mm
Cutout Hole Height
90mm
Recessed Ceiling
Yes
Depth Required
105mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
12W
IP Rating
IP44
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
LED Number
2
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
2x1100lm
Light Efficiency
91,67lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
20cm
Box Width
12,5cm
Box Height
10,5cm
Box Weight
0.690kg
Pcs/Carton
24
Barcode
5291889047360
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
