03 Recessed Spots Adjustable > The Dual Ring Range Aluminium
51205ABG/B

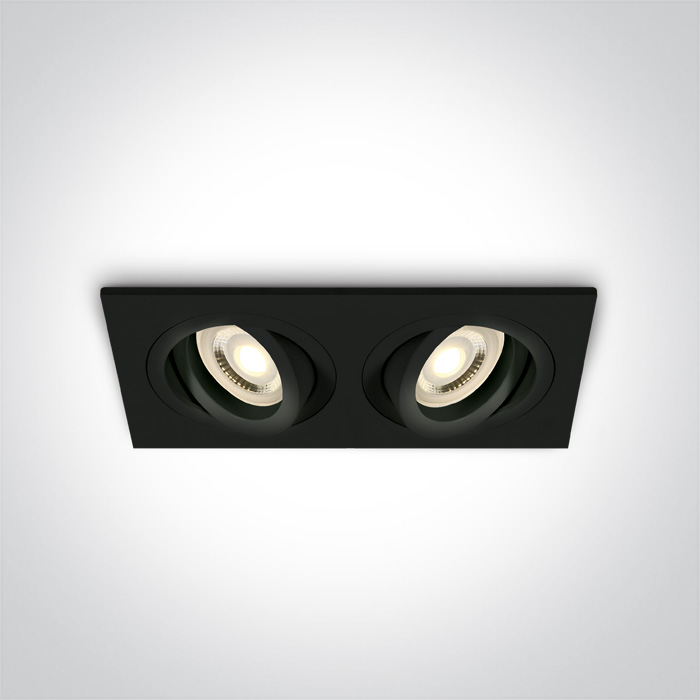

Recessed adjustable MR16 spot with GU10 lamp holder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
03 Recessed Spots Adjustable
Family
The Dual Ring Range Aluminium
Order Code
51205ABG/B
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
176mm
Width
94mm
Height
30mm
Cutout Hole Width
162mm
Cutout Hole Height
82mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Packing Info
Box Length
19cm
Box Width
12cm
Box Height
5cm
Box Weight
0.485kg
Pcs/Carton
20
Barcode
5291889017806
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
14
