07 Downlights Adjustable LED > The COB Box Type Shop Range
51120/G/W
20W COB LED Recessed adjustable downlight, COB square range, IP20.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

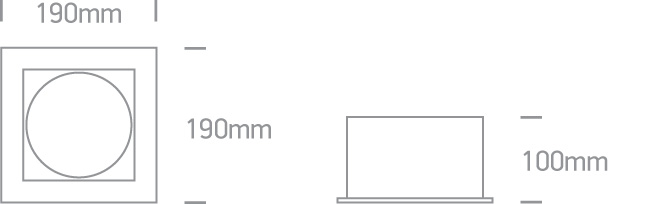

Dimensions
Downloads
Physical Specification
Item Group
07 Downlights Adjustable LED
Family
The COB Box Type Shop Range
Order Code
51120/G/W
Colour
Grey
Material
Aluminium
Shape
Rectangular
Length
190mm
Width
190mm
Height
100mm
Cutout Hole Width
165mm
Cutout Hole Height
165mm
Recessed Ceiling
Yes
Depth Required
140mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
37,3V
Safety Class
Power (Watts)
18,65W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13,5-21W
Power Factor
0,9
Constant Current
Yes
500mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1400lm
Light Efficiency
70lm/W
CRI
80
Beam Angle
36°
Illumination Diagram
Packing Info
Box Length
23cm
Box Width
23cm
Box Height
17cm
Box Weight
1.358kg
Pcs/Carton
12
Barcode
5291889041108
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
15
