04 Recessed Spots Adjustable LED > Moving Inner Cylinder Range
51106M/W/W

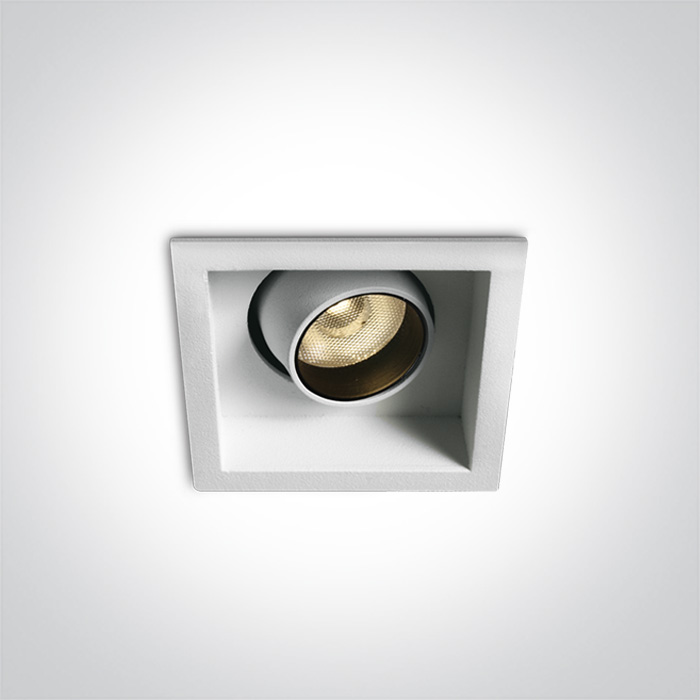

6W LED recessed adjustable spot, IP20.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.

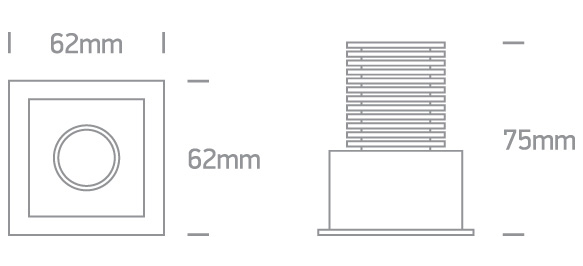

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
Moving Inner Cylinder Range
Order Code
51106M/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
62mm
Width
62mm
Height
75mm
Cutout Hole Width
58mm
Cutout Hole Height
58mm
Recessed Ceiling
Yes
Depth Required
95mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
17,6V
Safety Class
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
540lm
Light Efficiency
90lm/W
CRI
90
Beam Angle
24°
Illumination Diagram
Packing Info
Box Length
8,5cm
Box Width
8,5cm
Box Height
10,5cm
Box Weight
0.263kg
Pcs/Carton
60
Barcode
5291889064305
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
