03 Recessed Spots Adjustable > The Trimless GU10 Range Square
51010TR/W

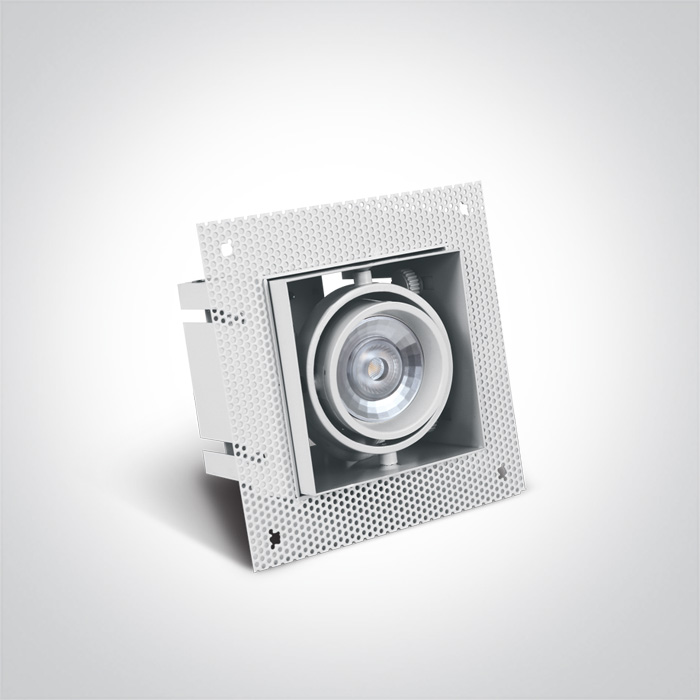

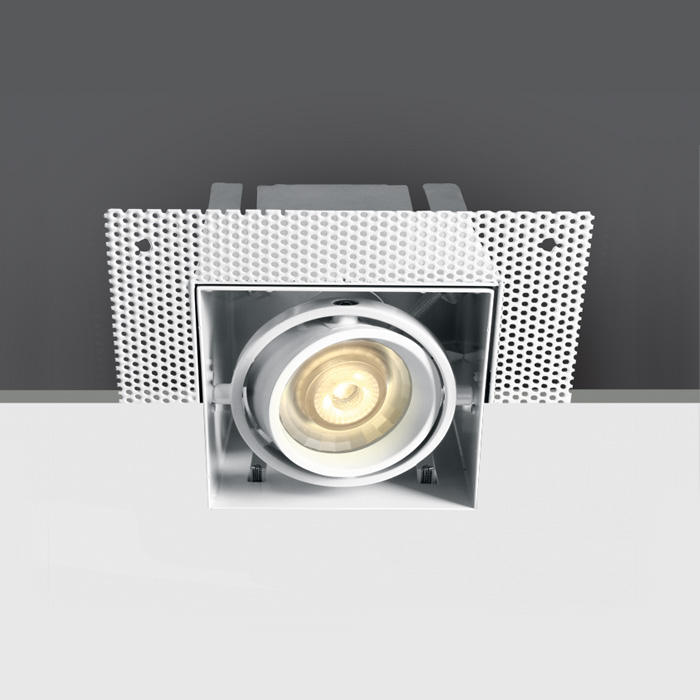

Recessed Trimless adjustable MR16 spot with GU10 lamp holder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

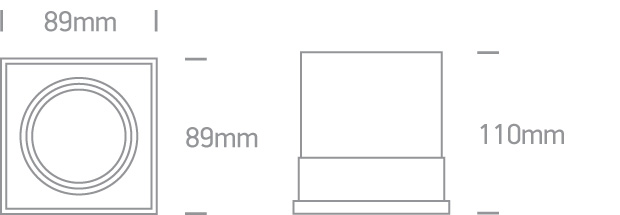

Dimensions
Downloads
Physical Specification
Item Group
03 Recessed Spots Adjustable
Family
The Trimless GU10 Range Square
Order Code
51010TR/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
89mm
Width
89mm
Height
110mm
Cutout Hole Width
97,5mm
Cutout Hole Height
97,5mm
Recessed trimmless ceiling
Yes
Depth Required
150mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
F Mark
Illumination Data
Illumination Diagram
Packing Info
Box Length
15cm
Box Width
15cm
Box Height
14cm
Box Weight
0.875kg
Pcs/Carton
16
Barcode
5291889019251
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
