05 Downlights Fixed > Panels 600x600mm
50140F/V

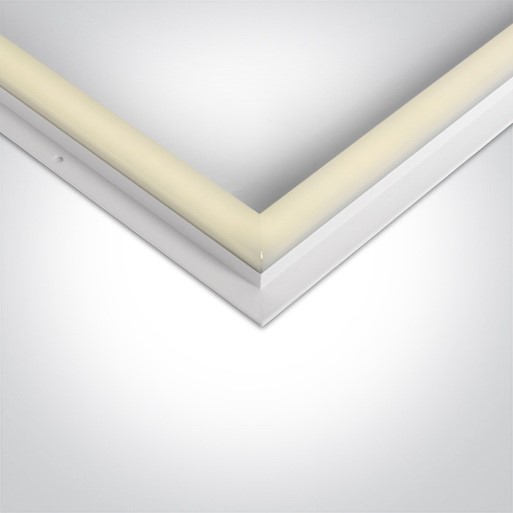

36W CCT Variable 60x60 recessed frame light LED panel for T-rail false ceiling.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

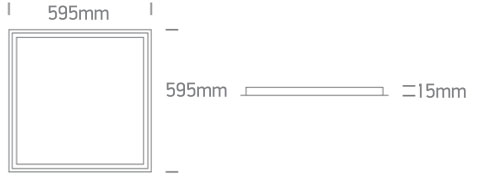

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
Panels 600x600mm
Order Code
50140F/V
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
595mm
Width
595mm
Height
15mm
Recessed T-Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
36W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
950mA
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5500K
Lumen Output
3600lm
Light Efficiency
100lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.780kg
Pcs/Carton
4
Barcode
5291889083115
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
60000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
25
