05 Downlights Fixed > LED Downlights

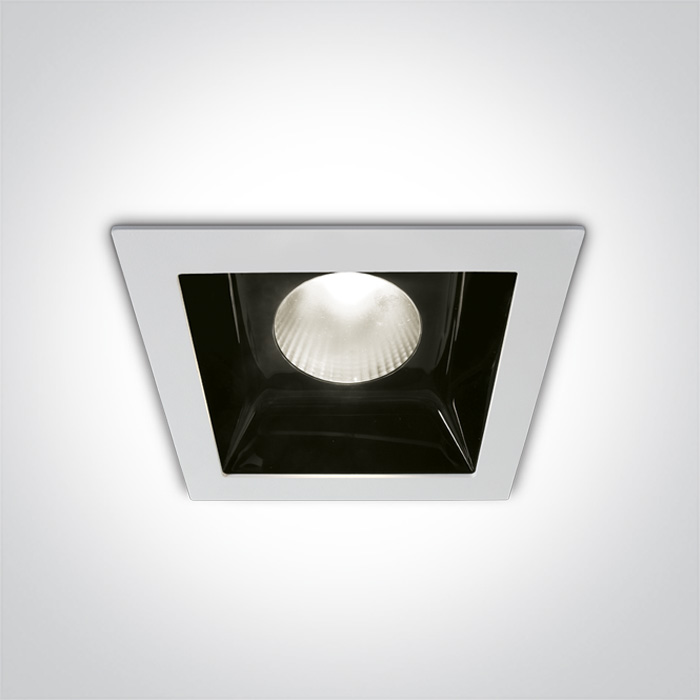

50130B/W/C
30W downlight LED, shop square boxes range IP20, ideal for commercial
applications such as offices, galleries and showrooms.
Supplied with 750mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 750mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

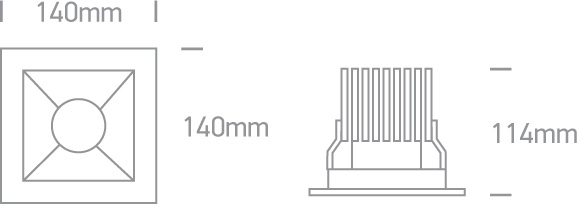

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
LED Downlights
Order Code
50130B/W/C
Colour
White
Material
Aluminium
Shape
Rectangular
Length
140mm
Width
140mm
Height
114mm
Cutout Hole Width
130mm
Cutout Hole Height
130mm
Recessed Ceiling
Yes
Depth Required
120mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
750mA
Voltage
35,5V
Safety Class
Power (Watts)
26,62W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
25-30W
Power Factor
0,9
Constant Current
Yes
750mA
33-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
4000K
Lumen Output
2700lm
Light Efficiency
90lm/W
CRI
80
Beam Angle
30°
Illumination Diagram
Packing Info
Box Length
16cm
Box Width
16cm
Box Height
13cm
Box Weight
0.988kg
Pcs/Carton
16
Barcode
5291889061434
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
