05 Downlights Fixed > LED Downlights

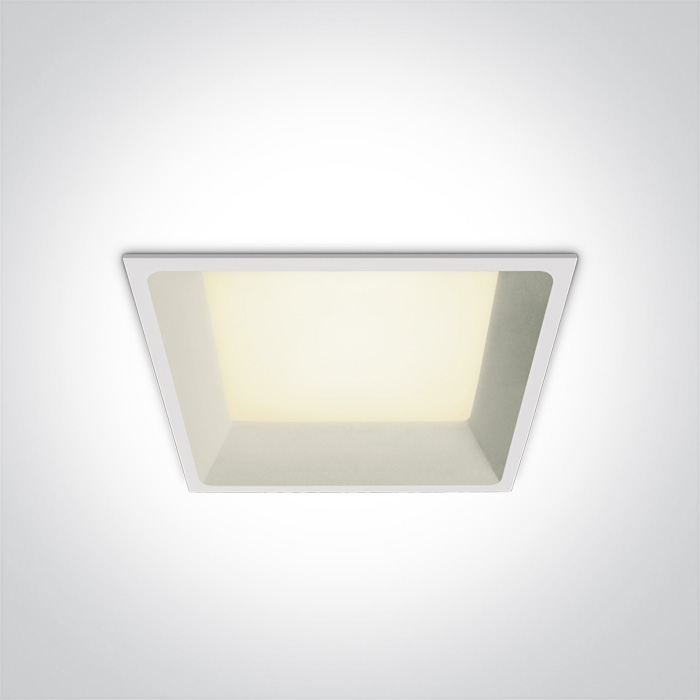

50122D/W/C
22W Dark Light LED Downlight .
Supplied with 500mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 500mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
.jpg)
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
LED Downlights
Order Code
50122D/W/C
Colour
White
Material
Die Cast
Shape
Rectangular
Length
170mm
Width
170mm
Height
55mm
Cutout Hole Width
160mm
Cutout Hole Height
160mm
Recessed Ceiling
Yes
Depth Required
75mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
22W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
40V
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,5-20W
Power Factor
0,9
Constant Current
Yes
500mA
25-40V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-30℃ ~ +50℃
Housing Material
Plastic
Illumination Data
Colour Temperature
4000K
Lumen Output
1870lm
Light Efficiency
85lm/W
CRI
80
Beam Angle
100°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.660kg
Pcs/Carton
20
Barcode
5291889060802
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
