05 Downlights Fixed > The 16-30W Square Recessed Panels Aluminium

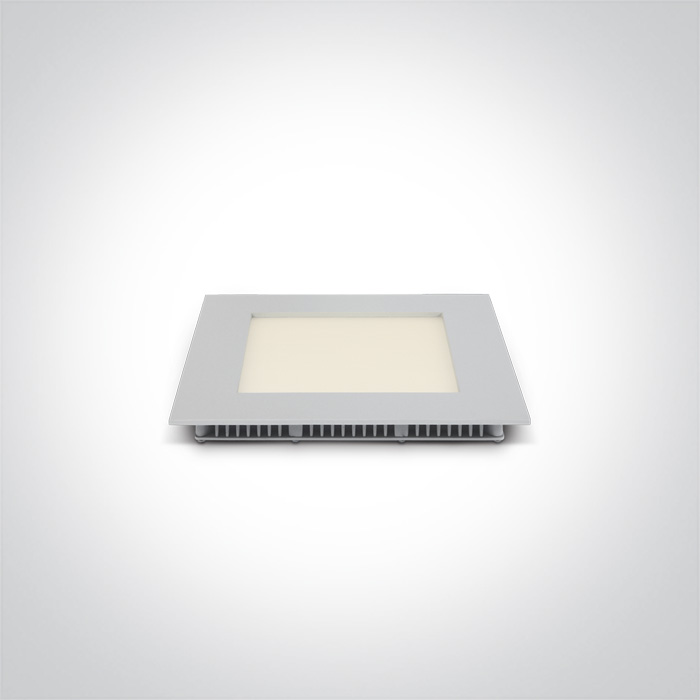

50116FA/W/V
CCT Variable 16W slim downlight LED, IP20, ideal for commercial
applications such as offices, galleries and showrooms.
Supplied with 400mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 400mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
The 16-30W Square Recessed Panels Aluminium
Order Code
50116FA/W/V
Colour
White
Material
Die Cast
Diffuser Material
Acrylic
Shape
Rectangular
Length
173mm
Width
173mm
Height
22mm
Cutout Hole Width
155mm
Cutout Hole Height
155mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
16W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
400mA
Safety Class
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
120
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
10-16W
Constant Current
Yes
400mA
25-40V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
75°C
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K-4000K-5700K
Lumen Output
1600lm
Light Efficiency
100lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
0.470kg
Pcs/Carton
20
Barcode
5291889078975
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
36000 hours L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
23
