05 Downlights Fixed > UGR19 CCT V Office Range Square
50115UV/W/V

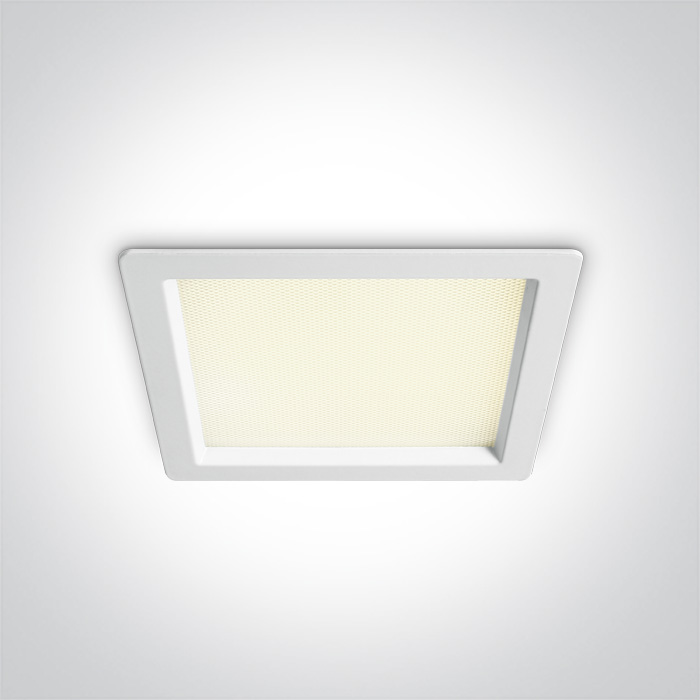

15W SMD LED UGR19 downlight with adjustable CCT, IP44.
Complete with 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 350mA driver.
Complies with standard EN60598-1 and any other specific standards.

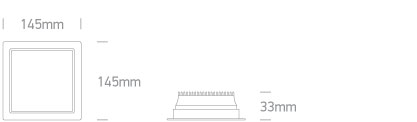

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
UGR19 CCT V Office Range Square
Order Code
50115UV/W/V
Colour
White
Material
Die Cast
Shape
Rectangular
Length
145mm
Width
145mm
Height
33mm
Cutout Hole Width
130mm
Cutout Hole Height
130mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
38,5V
Safety Class
Power (Watts)
13,47W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8,75-14W
Power Factor
0,9
Constant Current
Yes
350mA
25-40V
IP Rating
IP44
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K-4000K-6000K
Lumen Output
1650lm
Light Efficiency
110lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.535kg
Pcs/Carton
20
Barcode
5291889075189
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
