05 Downlights Fixed > Floating Square Panels Range Adjustable Cut Out Hole

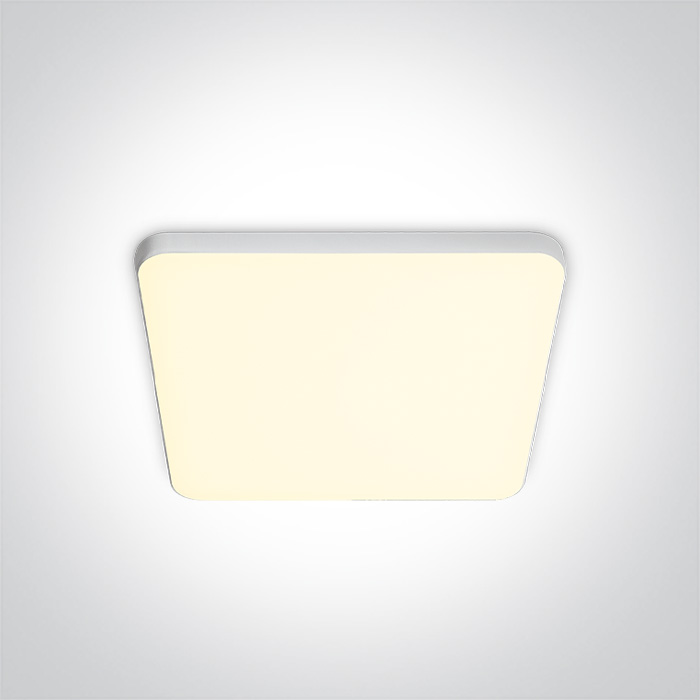

50114CE/W
14W Downlight LED, IP20.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.

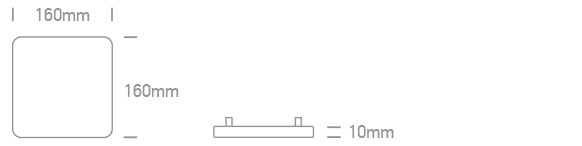

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
Floating Square Panels Range Adjustable Cut Out Hole
Order Code
50114CE/W
Colour
White
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
160mm
Width
160mm
Height
10mm
Cutout Hole Diameter
70mm-140mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
14W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
36,5V
Safety Class
Power (Watts)
10,95W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 4014
LED Brand
Zhaochi
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,2-12,6W
Power Factor
0,85
Constant Current
Yes
300mA
24-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1610lm
Light Efficiency
115lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.332kg
Pcs/Carton
40
Barcode
5291889073963
HS Code
9405413990

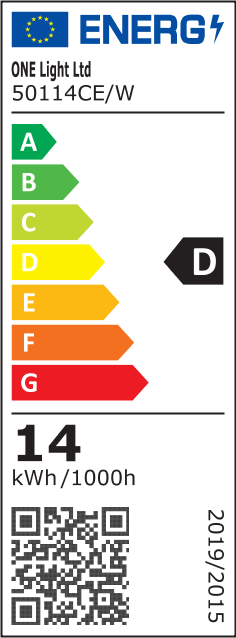

Energy Label
Energy Class
Energy Consumption
14kWh/1000h
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
