05 Downlights Fixed > Floating Square Panels Range Adjustable Cut Out Hole

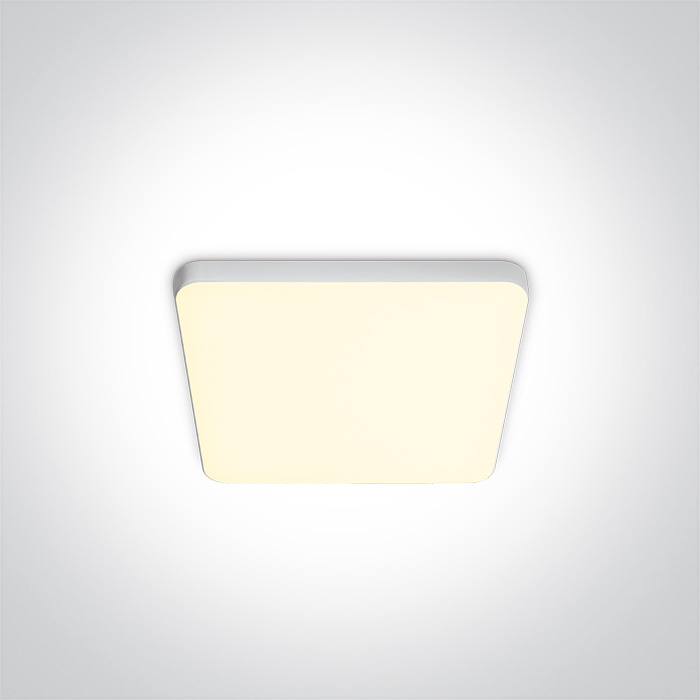

50110CE/W
10W Downlight LED, IP20.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
05 Downlights Fixed
Family
Floating Square Panels Range Adjustable Cut Out Hole
Order Code
50110CE/W
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
120mm
Width
120mm
Height
10mm
Cutout Hole Diameter
50mm-100mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
250mA
Voltage
30,7V
Safety Class
Power (Watts)
7.675W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 4014
LED Brand
Zhaochi
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6,75-12W
Power Factor
0,85
Constant Current
Yes
250mA
27-48V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1150lm
Light Efficiency
115lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.227kg
Pcs/Carton
40
Barcode
5291889073949
HS Code
9405413990
Energy Label
Energy Class
Energy Consumption
10kWh/1000h
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
