New 2025 Edition 3 > Flat Magnetic

43102FB/B/V

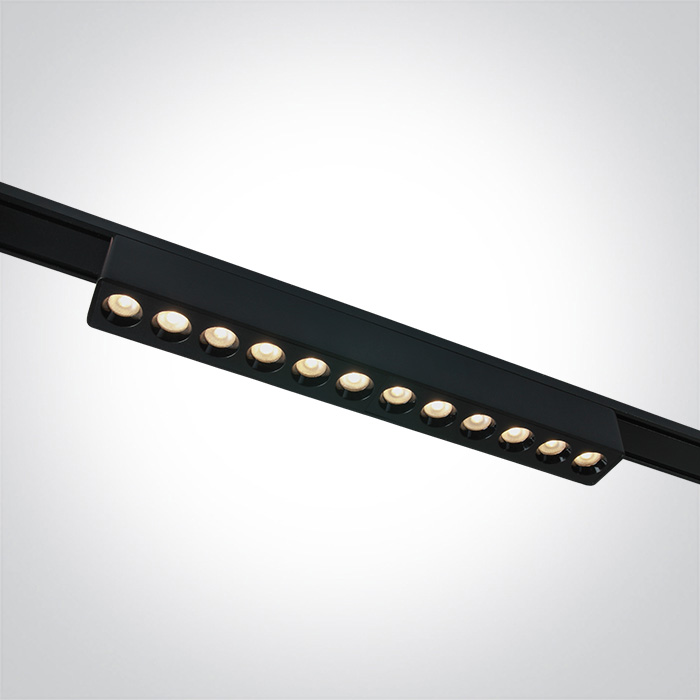

12W Black CCT Variable LED Linear spots.

Suitable for FLAT magnetic track.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
Wall
IP
CRI
Beam Angle
CE

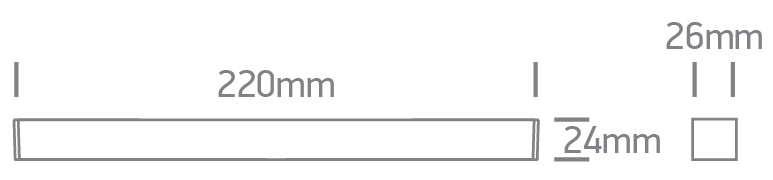

Dimensions
Downloads

Physical Specification

+
Item Group
New 2025 Edition 3
Family
Flat Magnetic
Order Code
43102FB/B/V
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
220mm
Width
26mm
Height
24mm
Surface Wall
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
No

Electrical Characteristics

+
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in

Illumination Data

+
Colour Temperature
3000K-4000K-5000K
Lumen Output
1080lm
Light Efficiency
90lm/W
CRI
90
Beam Angle
24°
Illumination Diagram

Packing Info

+
Pcs/Carton
30
Barcode
5291889087571
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
