ONE Light

    • 09 Tracks & Magnetic > Magnetic Linear Lights FLAT System CCT V

    43100FB/B/V
    Related items
    43001F/B
    43002F/B
    43100FB/B/V

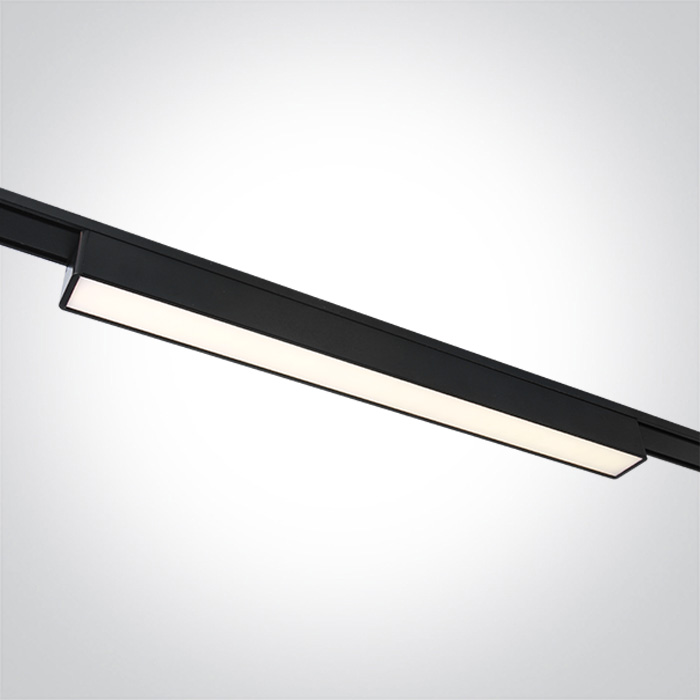

    10W Black CCT Variable LED Linear light.

    Suitable for FLAT magnetic track.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor
    Ceiling
    IP
    CRI
    Beam Angle
    CE

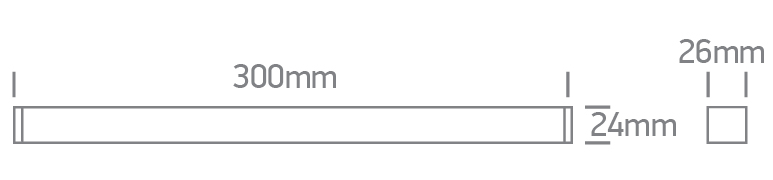

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    09 Tracks & Magnetic
    Family
    Magnetic Linear Lights FLAT System CCT V
    Order Code
    43100FB/B/V
    Colour
    Black
    Material
    Aluminium
    Shape
    Rectangular
    Length
    300mm
    Width
    26mm
    Height
    24mm
    Track mounted
    Yes
    Indoor
    Yes
    Adjustable
    No

    Electrical Characteristics

    +
    Gear
    Order Separately
    Fitting
    Input Type
    Constant Voltage
    Input Voltage
    48V DC
    Safety Class
    Power (Watts)
    10W
    IP Rating
    IP20
    Light Source
    LED built in

    Illumination Data

    +
    Colour Temperature
    3000K-4000K-5000K
    Lumen Output
    800lm
    Light Efficiency
    80lm/W
    CRI
    90
    Beam Angle
    120°
    Illumination Diagram

    Packing Info

    +
    Box Weight
    0.210kg
    Pcs/Carton
    30
    Barcode
    5291889087601
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    25
