ONE Light

    • New 2025 Edition 3 > Magnetic Lights

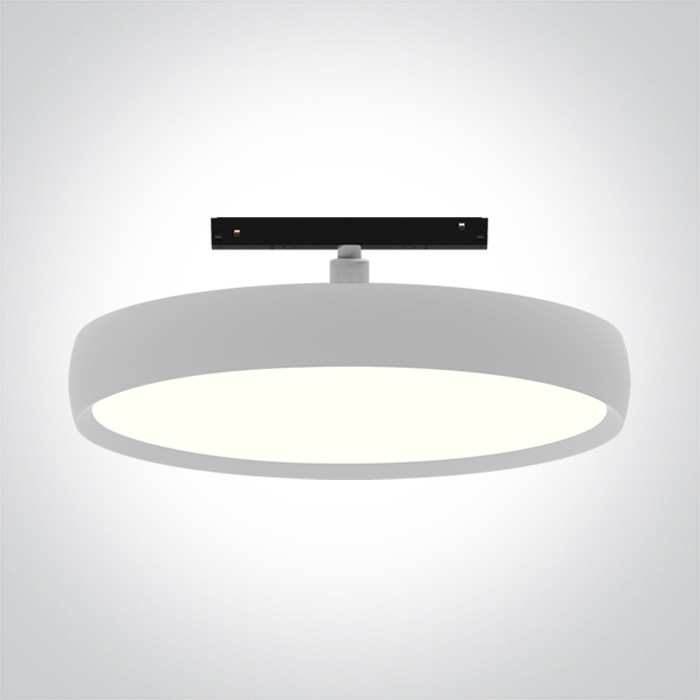

    42146/W/V
    42146/W/V
    30W CCT Variable UGR19 LED Plafo for magnetic profiles.

    Suitable for MINI, MIDI, MAXI and P&P magnetic profiles.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor
    Ceiling
    IP
    CRI
    CRI
    Beam Angle
    CE
    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    New 2025 Edition 3
    Family
    Magnetic Lights
    Order Code
    42146/W/V
    Colour
    White
    Material
    Aluminium
    Shape
    Circular
    Height
    60mm
    Diameter
    400mm
    Surface Ceiling
    Yes
    Track mounted
    Yes
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Order Separately
    Fitting
    Input Type
    Constant Voltage
    Input Voltage
    48V DC
    Safety Class
    Power (Watts)
    30W
    IP Rating
    IP20
    Light Source
    LED built in
    F Mark

    Illumination Data

    +
    Colour Temperature
    3000K-3500K-4000K
    Lumen Output
    2700lm
    Light Efficiency
    90lm/W
    CRI
    90
    Illumination Diagram

    Packing Info

    +
    Box Weight
    3.500kg
    Pcs/Carton
    10
    Barcode
    5291889085812
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    25
