New 2025 Edition 3 > Magnetic Lights
42144/W/V

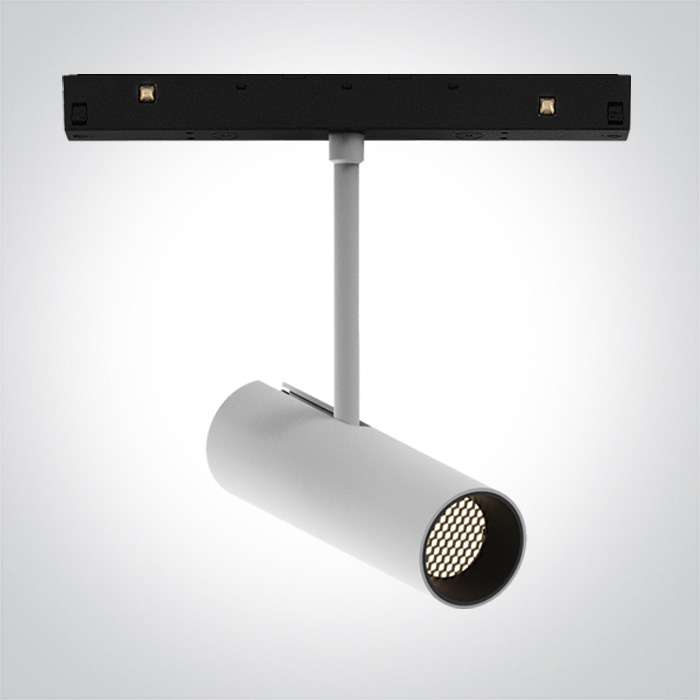

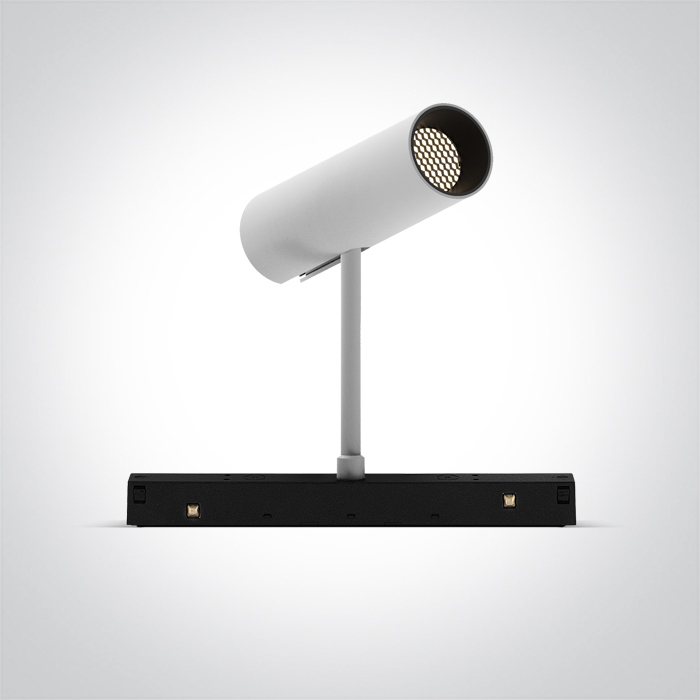

10W CCT Variable LED spot with honeycomb for magnetic profiles.
Suitable for MINI, MIDI, MAXI and P&P magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Suitable for MINI, MIDI, MAXI and P&P magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Magnetic Lights
Order Code
42144/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
150mm
Diameter
46mm
Surface Ceiling
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
700lm
Light Efficiency
70lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.450kg
Pcs/Carton
20
Barcode
5291889085607
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
