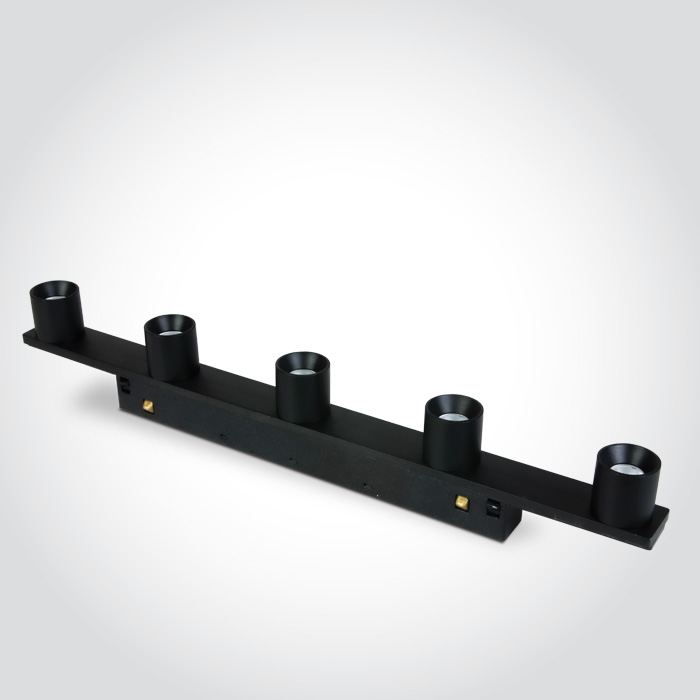

    42128C/B/W

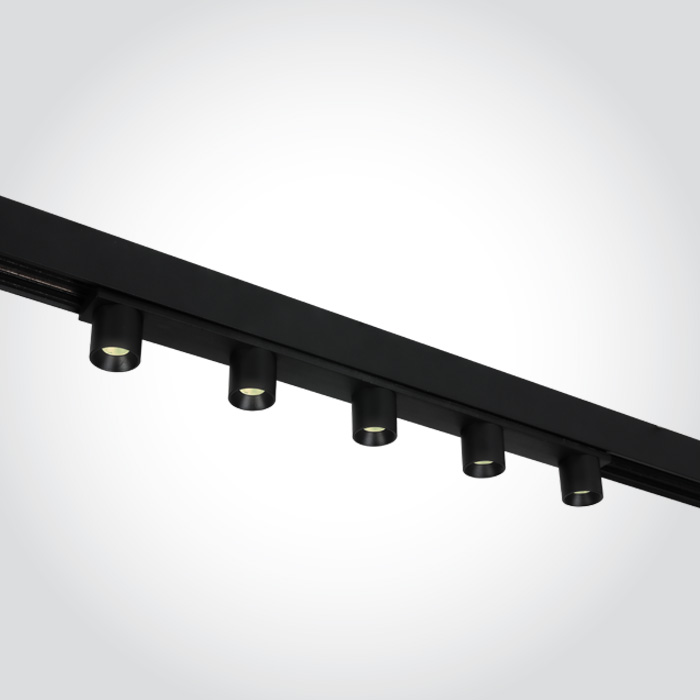

    LED Linear magnetic track light, ideal for shops and showrooms.

    Suitable for MINI and MIDI magnetic tracks.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor
    Ceiling
    Wall
    IP
    CRI
    Beam Angle
    CE

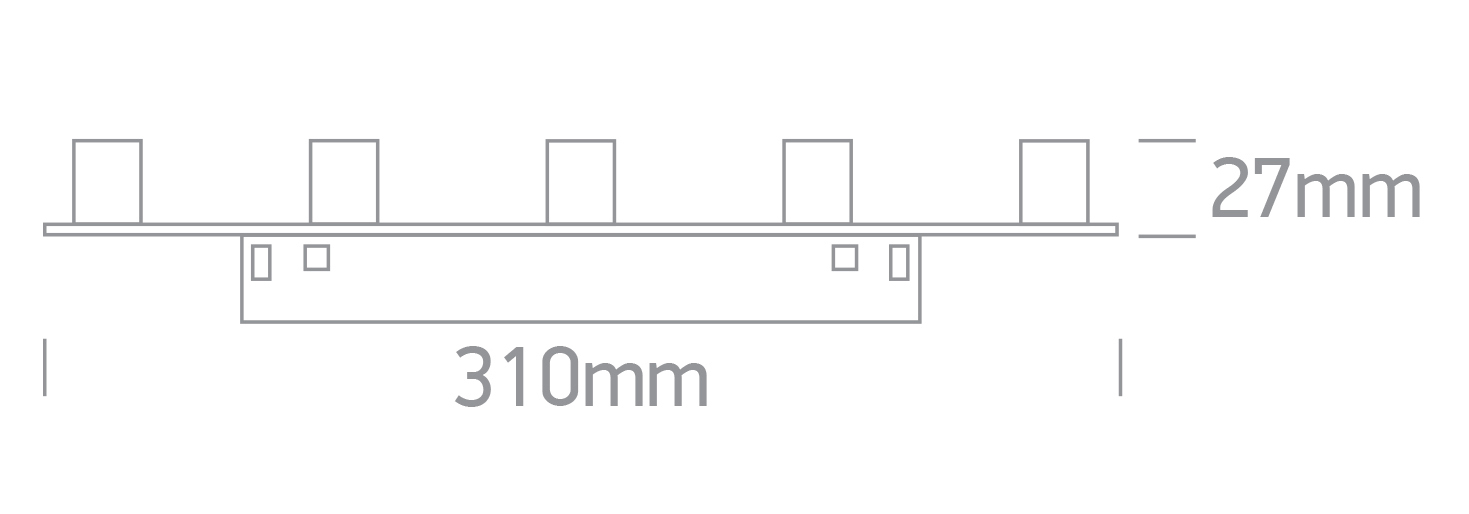

    Dimensions
    Downloads
    Product PDF IES Photo Download

    Physical Specification

    +
    Item Group
    09 Tracks & Magnetic
    Family
    Magnetic Linear Tubes
    Order Code
    42128C/B/W
    Colour
    Black
    Material
    Aluminium
    Shape
    Rectangular
    Length
    310mm
    Height
    27mm
    Surface Wall
    Yes
    Track mounted
    Yes
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Order Separately
    Fitting
    Input Type
    Constant Voltage
    Input Voltage
    48V DC
    Safety Class
    Power (Watts)
    5x2W
    IP Rating
    IP20
    Light Source
    LED built in
    LED Type
    SMD 3030
    LED Brand
    Osram

    Illumination Data

    +
    Colour Temperature
    3000K
    Lumen Output
    500lm
    Light Efficiency
    50lm/W
    CRI
    90
    Beam Angle
    36º
    Illumination Diagram

    Packing Info

    +
    Box Weight
    0.246kg
    Pcs/Carton
    30
    Barcode
    5291889079934
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    3 years
    Average Lifetime
    36000Hrs L70B50
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    24
