ONE Light

    • 09 Tracks & Magnetic > Magnetic Linear Tubes

    42128B/B/V
    Gallery
    42128B/B/V
    Related items
    42001A/B
    42001ATR/B
    42001B/B
    42001RB/B
    42002A/B
    42002ATR/B
    42002B/B
    42002RB/B
    42128B/B/V

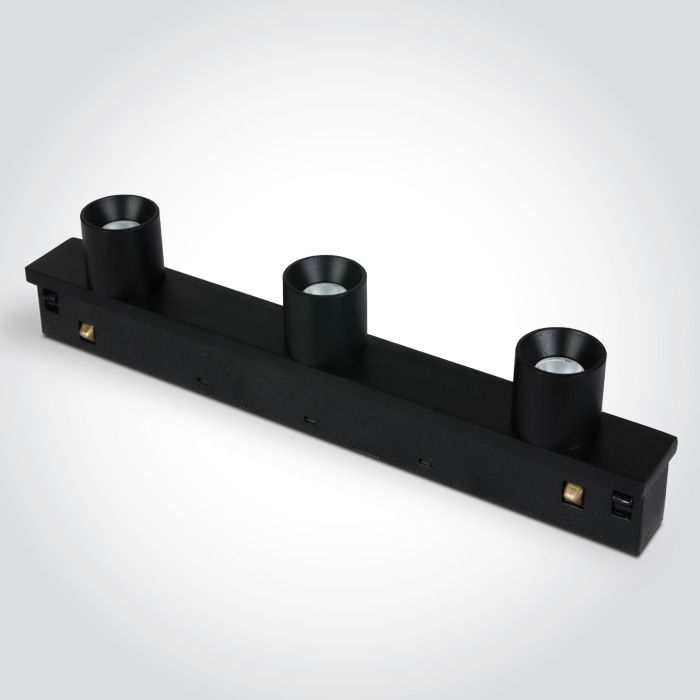

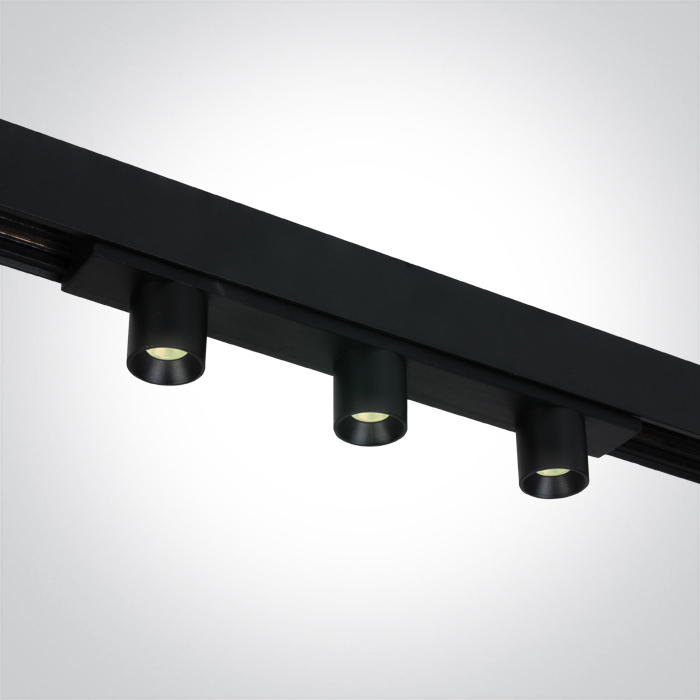

    3x2W CCT Variable LED spot for magnetic profiles.

    Suitable for MINI and MIDI magnetic profiles.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor
    Ceiling
    Wall
    IP
    CRI
    Beam Angle
    CE

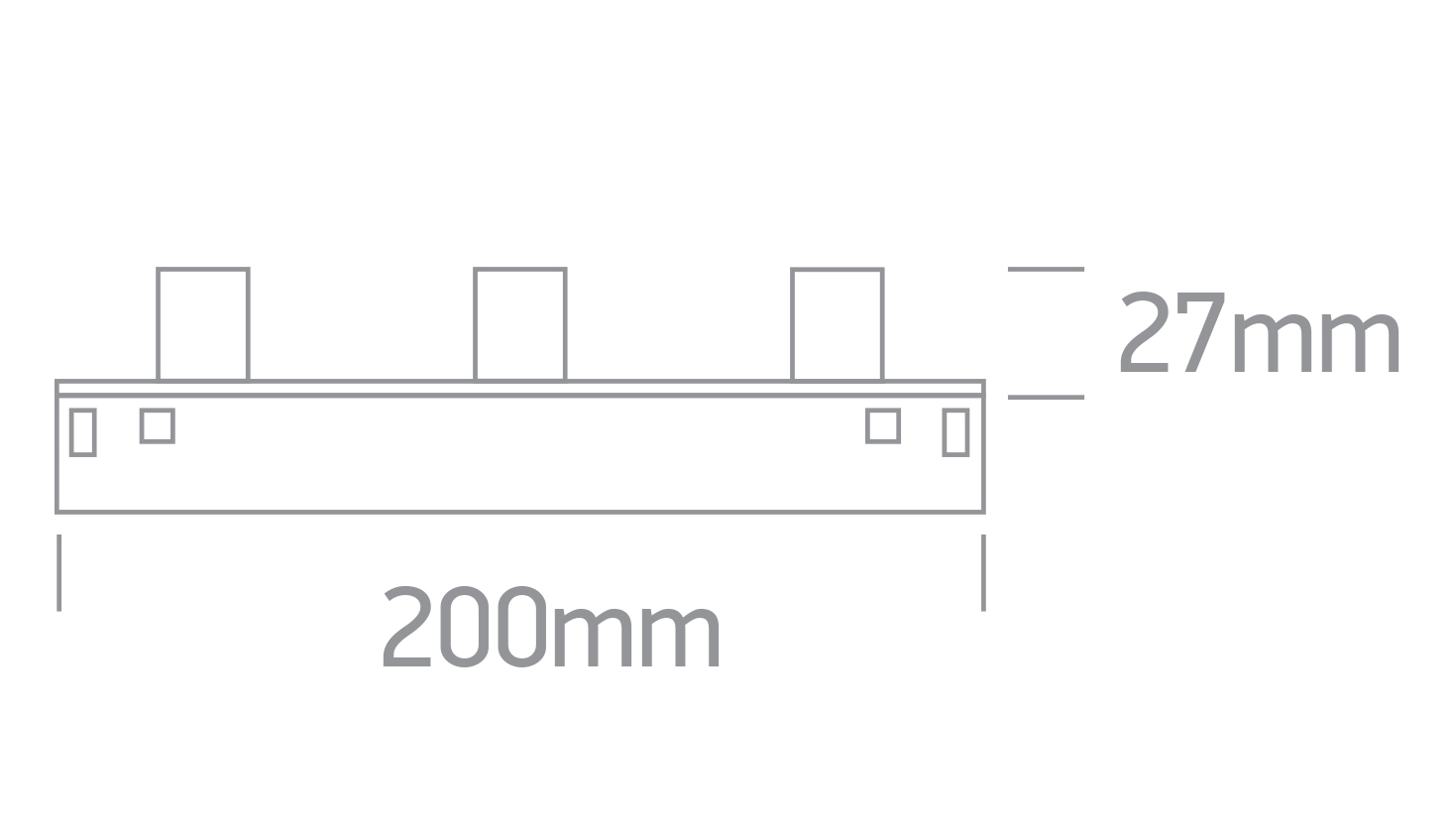

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    09 Tracks & Magnetic
    Family
    Magnetic Linear Tubes
    Order Code
    42128B/B/V
    Colour
    Black
    Material
    Aluminium
    Shape
    Rectangular
    Length
    200mm
    Height
    27mm
    Surface Wall
    Yes
    Track mounted
    Yes
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Order Separately
    Fitting
    Input Type
    Constant Voltage
    Input Voltage
    48V DC
    Safety Class
    Power (Watts)
    3x2W
    IP Rating
    IP20
    Light Source
    LED built in
    LED Type
    SMD

    Illumination Data

    +
    Colour Temperature
    3000K-3500K-4000K
    Lumen Output
    300lm
    Light Efficiency
    50lm/W
    CRI
    90
    Beam Angle
    36º
    Illumination Diagram

    Packing Info

    +
    Box Weight
    0.180kg
    Pcs/Carton
    50
    Barcode
    5291889089148
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    26
