09 Tracks & Magnetic > Magnetic Adjustable Linear Spots

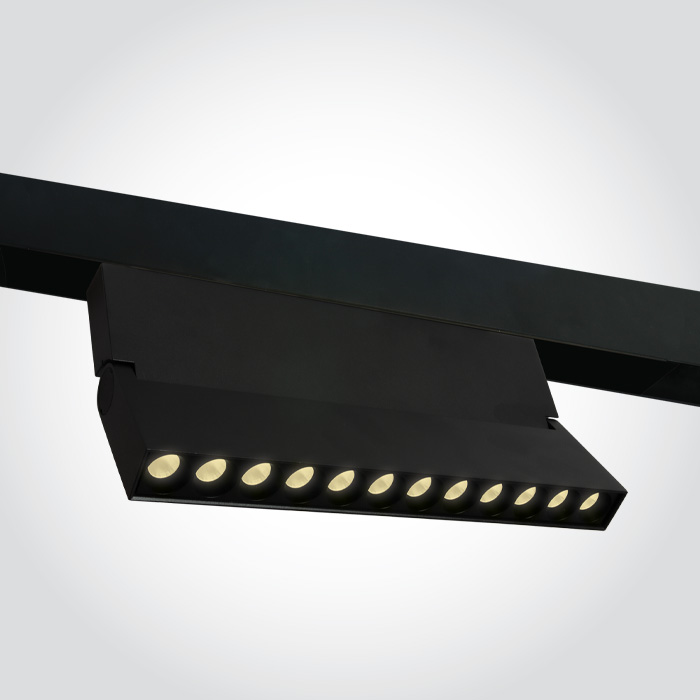

42124BA/B/W
LED linear magnetic track light, ideal for shops and showrooms.
Suitable for MINI and MIDI magnetic tracks.
Adjustable 2 directions in the MINI, and 1 direction in the MIDI.
Complies with standard EN60598-1 and any other specific standards.
Suitable for MINI and MIDI magnetic tracks.
Adjustable 2 directions in the MINI, and 1 direction in the MIDI.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
09 Tracks & Magnetic
Family
Magnetic Adjustable Linear Spots
Order Code
42124BA/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
248mm
Width
25mm
Height
120mm
Surface Ceiling
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
1600lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
0.750kg
Pcs/Carton
20
Barcode
5291889079514
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
